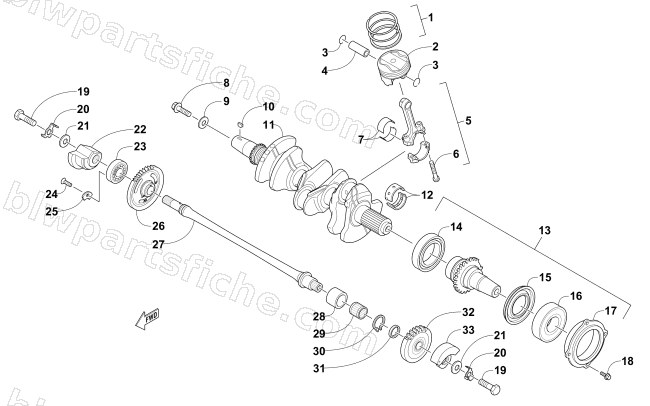

PISTON AND CRANKSHAFT ASSEMBLY
2018 ZR 7000 SNO PRO 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 3020-192 | CIRCLIP | 1 | $2.88 | |
| 7 | 3020-197 | BEARING, CONNECTING ROD - WHITE | 1 | $10.97 | |
| 7 | 3020-198 | BEARING, CONNECTING ROD - BLUE | 1 | $13.73 | |
| 7 | 3020-199 | BEARING, CONNECTING ROD - BLACK | 1 | $13.73 | |
| 7 | 3020-200 | BEARING, CONNECTING ROD - BROWN | 1 | $13.73 | |
| 7 | 3020-201 | BEARING, CONNECTING ROD - GREEN | 1 | $13.73 | |
| 7 | 3020-202 | BEARING, CONNECTING ROD - YELLOW | 1 | $13.73 | |
| 8 | 3020-203 | SCREW,CAP-HFH | 1 | $17.87 | |
| 9 | 3020-204 | WASHER | 1 | $5.92 | |
| 10 | 3020-206 | KEY | 1 | $5.37 | |
| 12 | 3020-208 | BEARING, CRANKSHAFT - BLACK | 1 | $22.01 | |
| 12 | 3020-209 | BEARING, CRANKSHAFT - BROWN | 1 | $22.01 | |
| 12 | 3020-210 | BEARING, CRANKSHAFT - GREEN | 1 | $22.01 | |
| 12 | 3020-211 | BEARING, CRANKSHAFT - YELLOW | 1 | $22.01 | |
| 12 | 3020-212 | BEARING, CRANKSHAFT - PINK | 1 | $22.01 | |
| 12 | 3020-213 | BEARING, CRANKSHAFT - RED | 1 | $23.39 | |
| 12 | 3020-214 | BEARING, CRANKSHAFT - WHITE | 1 | $23.39 | |
| 14 | 3020-216 | BEARING | 1 | $66.95 | |
| 15 | 3020-217 | OIL SEAL | 1 | $26.95 | |
| 16 | 3020-218 | BEARING | 1 | $66.95 | |
| 18 | 3020-220 | SCREW,CAP-HFH | 1 | $3.44 | |
| 19 | 3020-221 | SCREW,CAP-HSH | 1 | $3.16 | |
| 20 | 3020-222 | WASHER,TAB | 1 | $3.16 | |
| 21 | 3020-223 | WASHER | 1 | $6.89 | |
| 23 | 3020-225 | BEARING | 1 | $33.95 | |
| 24 | 3020-226 | SCREW,MACHINE(COUNTERSUNK) | 1 | $4.68 | |
| 25 | 3020-227 | PLATE, RETAINING | 1 | $15.11 | |
| 28 | 3020-230 | HOUSING,BEARING | 1 | $45.95 | |
| 29 | 3020-231 | BEARING | 1 | $49.95 | |
| 30 | 3020-232 | CIRCLIP | 1 | $3.57 | |
| 31 | 3020-233 | SPACER | 1 | $12.35 | |
| 32 | 3020-234 | GEAR, DRIVE | 1 | $65.95 | |
| 33 | 3020-235 | COUNTERWEIGHT | 1 | $88.95 |
