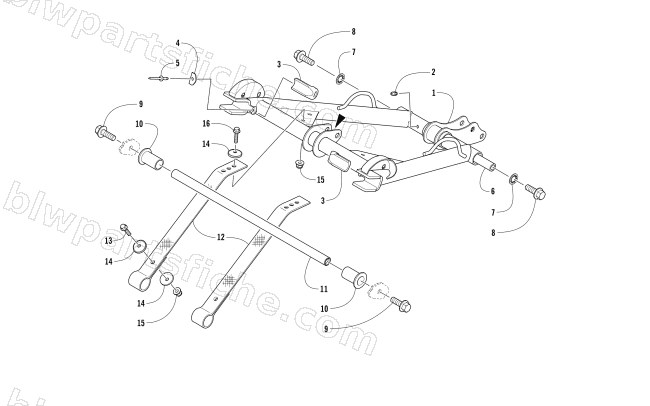

2018 Arctic Cat ZR 8000 EL TIGRE ES 129 — REAR SUSPENSION FRONT ARM ASSEMBLY
2018 ZR 8000 EL TIGRE ES 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 3 | 3604-141 | BUMPER,SLIDER-FRONT | 1 | $4.26 | |
| 4 | 3604-968 | PLATE,RETAINING-SLIDER BUMPER | 1 | $2.75 | |
| 5 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 7 | 1623-992 | WASHER,LOCK-M10 INTL TOOTH TYP J Z&C | 1 | $0.26 | |
| 8 | 8413-031 | SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353 | 1 | $2.61 | |
| 9 | 8408-041 | SCREW,CAP-HFH M10X1.25X40 CL8.8 W/2353 | 1 | $0.95 | |
| 10 | 3604-233 | BUSHING,FRONT SLIDER | 1 | $17.87 | |
| 11 | 3604-663 | AXLE,FRONT ARM-15.88 OD X 394.2 | 1 | $49.95 | |
| 12 | 3604-823 | STRAP,LIMITER-FRT ARM-401MM | 1 | $15.11 | |
| 13 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 14 | 8450-109 | WASHER,FLAT M6-6.87X25.4X2.32 Z&Y | 1 | $0.68 | |
| 15 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 16 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 |
