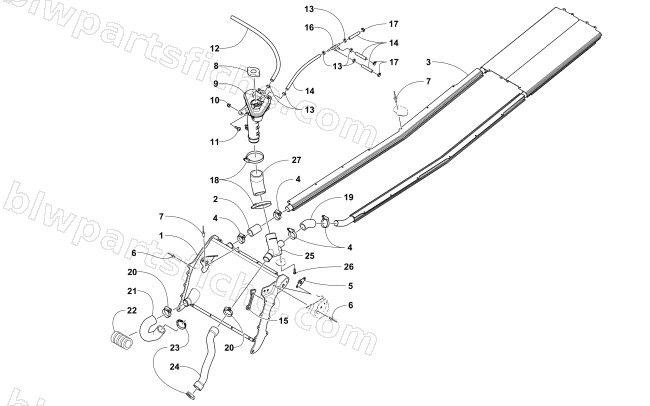

2018 Arctic Cat ZR 8000 LTD ES 137 EARLY BUILD — COOLING ASSEMBLY
2018 ZR 8000 LTD ES 137 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 4 | 2623-038 | CLAMP,HOSE-20/32 (NORMA) | 1 | $3.44 | |
| 5 | 0608-631 | PLATE,NUT-PTO-ENG/CHASSIS | 1 | $27.95 | |
| 6 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 6 | 8060-688 | RIVET,BLIND-DH SS66 ZINC | 1 | $0.40 | |
| 7 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 8 | 0413-255 | CAP,RADIATOR | 1 | $53.95 | |
| 9 | 0613-135 | TANK,COOLANT | 1 | $29.95 | |
| 10 | 8422-602 | NUT,HEX-THK NYL M6X1.00 CL8 Z&Y | 1 | $0.40 | |
| 11 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 12 | 0610-692 | HOSE,OIL/WATER-25 FT | 1 | $117.95 | |
| 12 | 0610-693 | HOSE,OIL-100 FT | 1 | $432.95 | |
| 13 | 1623-655 | CLAMP,HOSE-CRIMP-11.3 | 1 | $3.30 | |
| 14 | 0610-538 | HOSE,VENT- 25' (1054-152) | 1 | $117.95 | |
| 15 | 0613-272 | BUMPER,PROTECTOR-COOLANT HOSE | 1 | $4.40 | |
| 16 | 0610-717 | FITTING,COOLANT HOSE-DOUBLE T | 1 | $3.02 | |
| 17 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 18 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 | |
| 20 | 2623-088 | CLAMP,HOSE-23/35 | 1 | $2.88 | |
| 22 | 0619-619 | HOSE,PROT-CORRUGETED-4" 1.06 ID BLK NY | 1 | $3.44 | |
| 23 | 1623-656 | CLAMP,H0SE-CRIMP-36.1 | 1 | $3.99 | |
| 25 | 0613-228 | NIPPLE,TUNNEL HEAT EXCHANGER | 1 | $13.73 | |
| 26 | 1623-251 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&Y | 1 | $0.26 |
