2018 Arctic Cat ZR 8000 LTD ES 137 EARLY BUILD — HANDLEBAR AND CONTROLS

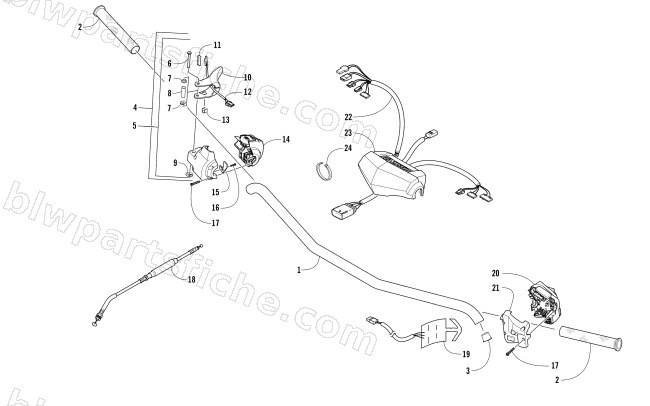

2018 ZR 8000 LTD ES 137 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 4 | 0609-888 | CONTROL,THROTTLE-R/H-REAR (36MM) | 1 | $105.95 | |
| 5 | 0609-859 | KIT, THROTTLE LEVER MOUNTING | 1 | $30.95 | |
| 9 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 10 | 0609-797 | LEVER, THROTTLE-36MM | 1 | $30.95 | |
| 11 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 12 | 0609-827 | ELEMENT,THUMBWARMER-H/L (15V) | 1 | $74.95 | |
| 13 | 0609-595 | CLIP,RETAINER-TW HARNESS | 1 | $2.47 | |
| 14 | 0609-880 | CONTROL, R/H-FRONT W/REV-2 STRK-2010 | 1 | $94.95 | |
| 15 | 0609-792 | COVER, CONTROL-RH-CONNECTOR RETENTION | 1 | $1.92 | |
| 16 | 0609-793 | SCREW, #4-24 HI-LO X .50" | 1 | $0.26 | |
| 17 | 0609-791 | SCREW,SELF TAP-TXPNH #8-18 X .875 HI-LO | 1 | $0.12 | |
| 18 | 0687-239 | CABLE,THROTTLE-DSI | 1 | $57.95 | |
| 19 | 0609-948 | ELEMENT,HW-RH H/L | 1 | $89.95 | |
| 19 | 0609-949 | ELEMENT,HW-LH H/L | 1 | $89.95 | |
| 20 | 0609-929 | CONTROL,LH-W/O PTT-FRT | 1 | $96.95 | |
| 21 | 0609-883 | CONTROL,L/H-REAR | 1 | $13.73 | |
| 23 | 6606-129 | PAD,HANDLEBAR-BLK | 1 | $20.63 | |
| 24 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 24 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
