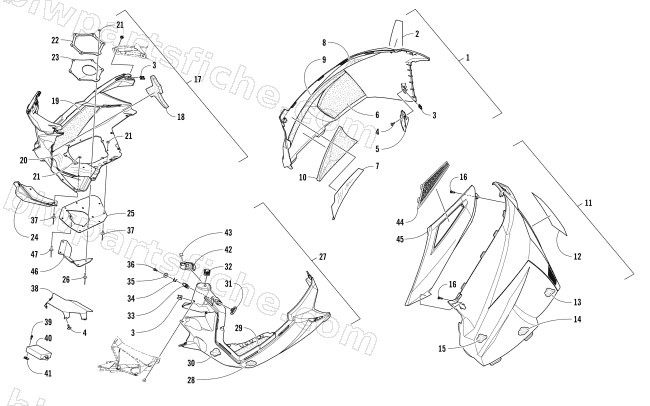

2018 Arctic Cat ZR 8000 RR ES 137 EARLY BUILD — SKID PLATE AND SIDE PANEL ASSEMBLY
2018 ZR 8000 RR ES 137 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5718-548 | PANEL,SIDE-RH DYN GRAY-W/DECAL (8000 RR) | 1 | $367.95 | |
| 1 | 5718-476 | PANEL,SIDE-RH DYN GRAY-W/WARNING DECAL | 1 | $322.95 | |
| 3 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 11 | 5718-549 | PANEL,SIDE-LH DYN GRAY-W/DECAL (8000 RR) | 1 | $367.95 | |
| 11 | 5718-477 | PANEL,SIDE-LH DYN GRAY-W/WARNING DECAL | 1 | $322.95 | |
| 20 | 3612-328 | FOIL,HEAT-SKID PLATE | 1 | $9.59 | |
| 21 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 22 | 3612-232 | PLATE,EXHAUST OUTLET | 1 | $13.73 | |
| 26 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 32 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 36 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 37 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 38 | 6606-940 | SHIELD,HEAT-ECU | 1 | $26.95 | |
| 39 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 40 | 0730-248 | ECM,PROGRAMMED-9T/2.86P 8DSI | 1 | $2,029.95 | |
| 41 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 42 | 7606-654 | BUMPER,PROTECTOR-RUBBER-8000 | 1 | $25.95 | |
| 43 | 0123-987 | CLIP,U-TYPE | 1 | $0.68 | |
| 46 | 2712-103 | DEFLECTOR,EXHAUST OUTLET-OUTER-PTD BLK | 1 | $41.95 |
