2018 Arctic Cat ZR 8000 SNO PRO ES 137 EARLY RELEASE — MAGNETO
2018 ZR 8000 SNO PRO ES 137 EARLY RELEASE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

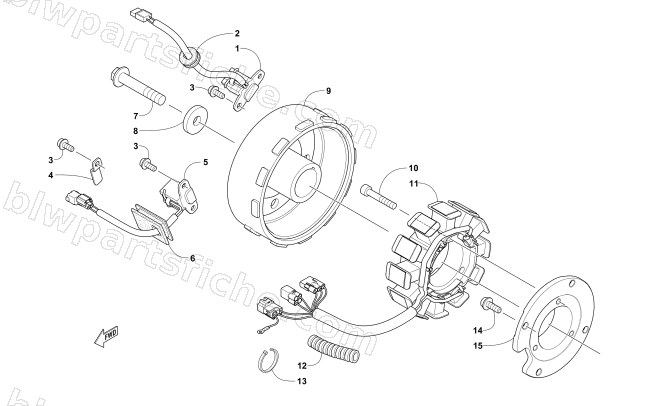

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0902-005 | SENSOR, IGNITION TIMING | 1 | $327.95 | |
| 2 | 0902-022 | GROMMET, 6.24 X 9.74 | 1 | $1.23 | |
| 3 | 0923-002 | SCREW,CAP-TSRDWH M5X.8X12 CL 10.9 | 1 | $0.55 | |
| 4 | 0902-020 | PLATE, STATOR LEAD WIRE | 1 | $3.44 | |
| 5 | 0902-006 | SENSOR, IGNITION TIMING | 1 | $333.95 | |
| 6 | 0902-021 | GROMMET, STATOR LEAD WIRE | 1 | $2.06 | |
| 7 | 0923-033 | SCREW,CAP-HFH M10X1.25X54 CL10.9 | 1 | $4.26 | |
| 8 | 0923-032 | WASHER,FLAT-M10X28 | 1 | $7.30 | |
| 10 | 0923-027 | SCREW, CAP-TSH M6X1X35 CL10.9 W/2510 | 1 | $4.26 | |
| 11 | 0902-049 | STATOR-HD | 1 | $369.95 | |
| 12 | 1619-131 | LOOM,PROTECTIVE-3/4 ID-12"-CTL | 1 | $3.44 | |
| 13 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 14 | 0923-024 | SCREW,CAP-TSRDWH M6X1X16 CL 10.9 | 1 | $1.09 | |
| 15 | 0902-014 | BASE, STATOR-PLATE | 1 | $141.95 |
