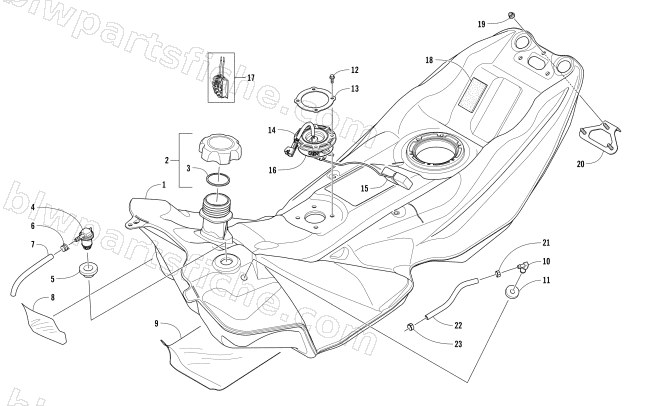

GAS TANK ASSEMBLY
2018 ZR 9000 RR 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 2670-048 | CAP,FUEL TANK-91 OCTANE MINIMUM | 1 | $13.73 | |
| 3 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 4 | 1670-787 | VALVE,CHECK | 1 | $34.95 | |
| 5 | 1670-822 | GROMMET,3/4"-FUEL TANK | 1 | $3.85 | |
| 6 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 | |
| 7 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 8 | 3612-316 | FOIL,HEAT-FUEL TANK | 1 | $16.49 | |
| 9 | 3612-315 | FOIL,HEAT-FUEL TANK | 1 | $13.73 | |
| 10 | 1670-324 | ELBOW, 90 DEG-1/4 BARB | 1 | $3.44 | |
| 11 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 12 | 8408-517 | SCREW,CAP-HFH M5X0.8X16 CL8.8 Z&Y W/2353 | 1 | $2.75 | |
| 13 | 2670-431 | RETAINER,FLANGE-LSA | 1 | $27.95 | |
| 14 | 2670-386 | SENDER, FUEL LEVEL | 1 | $208.95 | |
| 15 | 2670-235 | FLOAT,FUEL PUMP-WALBRO 75-22 | 1 | $6.89 | |
| 16 | 2623-035 | O-RING,46.9 ID X 5.3mm WIDE - 2-328 | 1 | $6.75 | |
| 18 | 0645-760 | PAD,BATTERY | 1 | $3.99 | |
| 19 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 20 | 5706-771 | BRKT,MTG-SEAT LATCH-ASSY | 1 | $15.11 | |
| 21 | 0610-415 | CLAMP,HOSE-10.8 MM TO 13.3 MM | 1 | $3.71 | |
| 22 | 0410-143 | HOSE,FUEL-1/4" 25' (0410-141 CTL) | 1 | $217.95 | |
| 23 | 0610-419 | CLAMP, HOSE (14.5), 12.0 MM TO 14.5 MM | 1 | $1.92 |
