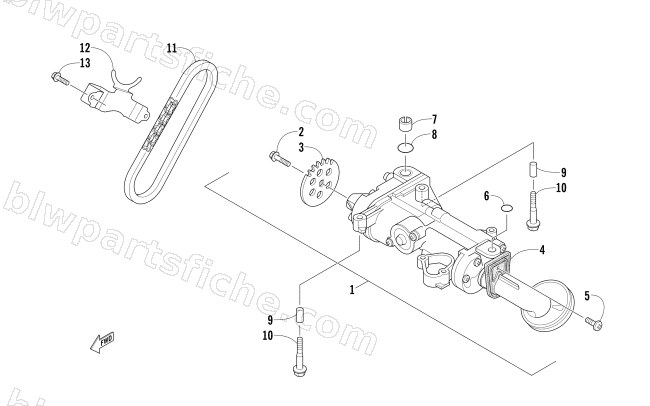

OIL PUMP ASSEMBLY
2018 ZR 9000 RR 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3020-282 | SCREW,CAP-HFH | 1 | $4.26 | |
| 4 | 3020-284 | ISOLATOR, OIL STRAINER | 1 | $20.63 | |
| 6 | 3020-285 | O-RING | 1 | $4.40 | |
| 7 | 3020-286 | INSERT | 1 | $2.88 | |
| 8 | 3020-287 | O-RING | 1 | $4.40 | |
| 9 | 3020-288 | PIN, DOWEL | 1 | $3.44 | |
| 10 | 3020-289 | SCREW,CAP-HFH | 1 | $3.16 | |
| 11 | 3020-290 | CHAIN | 1 | $19.25 | |
| 12 | 3020-291 | BRACKET,RETAINER-CHAIN | 1 | $37.95 | |
| 13 | 3020-292 | SCREW,CAP-HFH | 1 | $3.16 |
