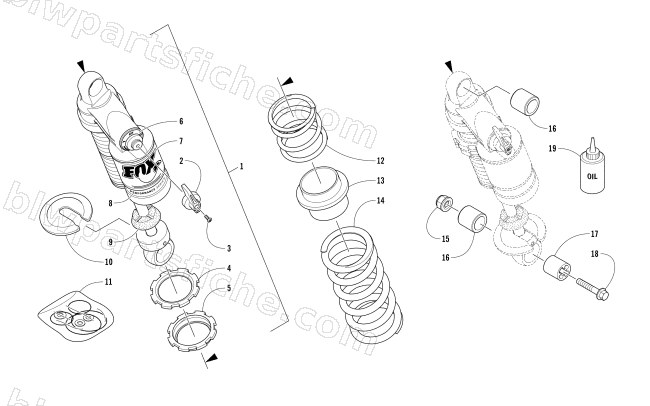

2018 Arctic Cat ZR 9000 RR 137 — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2018 ZR 9000 RR 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 3603-377 | SCREW,#4-40 X 1/4 SS | 1 | $12.35 | |
| 4 | 3603-026 | RING,PRELOAD BACK UP-2.4ODX.240TLG | 1 | $16.49 | |
| 5 | 3603-027 | RING,PRELOAD-2.40 OD X .450 TLG | 1 | $17.87 | |
| 7 | 3603-562 | DECAL,RESERVOIR-1.50 X 6.10 KASHIMA W/WA | 1 | $24.77 | |
| 8 | 3603-365 | DECAL,BAND-PERFORMANCE SERIES | 1 | $17.87 | |
| 9 | 3604-530 | BUMPER,SHOCK-.450 ID X .400 TLG | 1 | $49.95 | |
| 10 | 0403-490 | RETAINER,SPRING-2.55 OD X .34 TLG | 1 | $37.95 | |
| 16 | 3604-906 | BEARING,SHOCK FRT ARM-25.45 X 22.4X18.54 | 1 | $5.09 | |
| 18 | 8408-045 | SCREW,CAP-HFH M10X1.25X45 CL8.8 Z&Y | 1 | $4.68 | |
| 19 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
