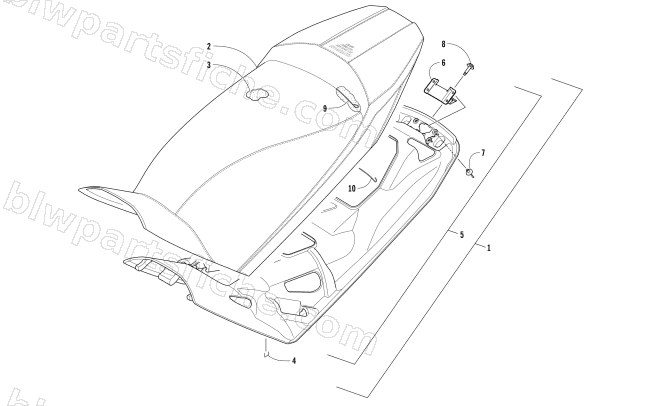

2018 Arctic Cat ZR 9000 RR 137 — SEAT ASSEMBLY
2018 ZR 9000 RR 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 6706-534 | SEAT,ASSY (214G2) | 1 | $610.95 | |
| 2 | 6706-535 | COVER,SEAT-214G2 | 1 | $382.95 | |
| 3 | 0717-214 | FOAM,SEAT-(80-85 ILD).48R@4.7 | 1 | $136.95 | |
| 4 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 6 | 6606-833 | HOOK,SEAT LATCH | 1 | $17.87 | |
| 7 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 8 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 9 | 3606-369 | WIRE,SEAT-BENT | 1 | $4.26 | |
| 10 | 6606-461 | WIRE,SEAT-3.048 DIA X 279.4 mm | 1 | $1.92 |
