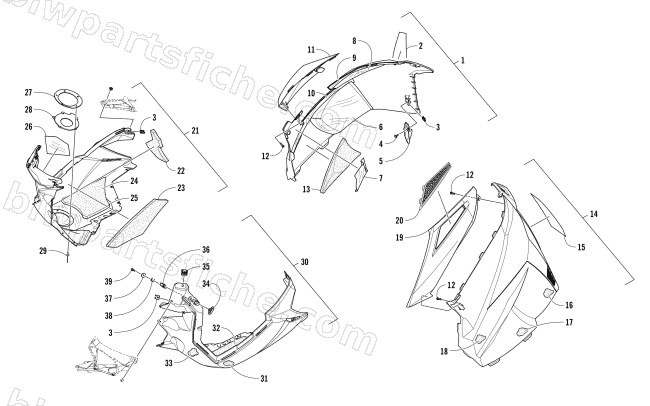

2018 Arctic Cat ZR 9000 RR 137 — SKID PLATE AND SIDE PANEL ASSEMBLY
2018 ZR 9000 RR 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5718-688 | PANEL,SIDE-RH DYN GRY-W/DECALS (9000 RR) | 1 | $374.95 | |
| 1 | 5718-620 | PANEL,SIDE-RH DYN GRY-W/WARNING DECAL | 1 | $322.95 | |
| 3 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 7 | 3612-322 | FOIL,HEAT-SIDE PANEL-UPR FWD-RH | 1 | $10.97 | |
| 8 | 3612-324 | FOIL,HEAT-SIDE PANEL-UPR RH | 1 | $10.97 | |
| 14 | 5718-689 | PANEL,SIDE-LH DYN GRY-W/DECALS (9000 RR) | 1 | $312.95 | |
| 14 | 5718-477 | PANEL,SIDE-LH DYN GRAY-W/WARNING DECAL | 1 | $322.95 | |
| 25 | 3612-326 | FOIL,HEAT-SKID PLATE | 1 | $19.25 | |
| 26 | 3612-330 | FOIL,HEAT-SKID PLATE | 1 | $2.88 | |
| 29 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 35 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 39 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 |
