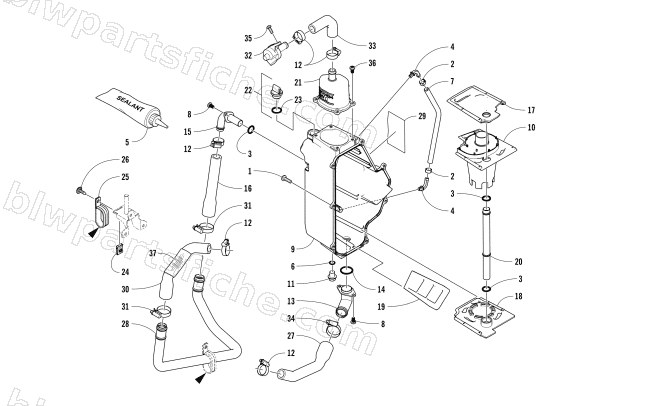

2018 Arctic Cat ZR 9000 THUNDERCAT 137 EARLY BUILD — OIL TANK ASSEMBLY
2018 ZR 9000 THUNDERCAT 137 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1623-814 | SCREW,MAG FORM-TXPH-M6X2.0X24 | 1 | $1.09 | |
| 2 | 0610-415 | CLAMP,HOSE-10.8 MM TO 13.3 MM | 1 | $3.71 | |
| 3 | 0670-183 | O-RING, 5/8 X 13/16 OD | 1 | $0.26 | |
| 5 | 1048-063 | LOCTITE,5699-GASKET MAKER(70ML) | 1 | $69.95 | |
| 6 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 7 | 0610-968 | HOSE,OIL LINE-7.94IDX11.11OD-25FT | 1 | $84.95 | |
| 8 | 1623-969 | SCREW,MAG FORM-TXPH-M6X2.0X12 Z&C | 1 | $1.64 | |
| 11 | 2602-099 | PLUG,FILL-12 MM | 1 | $13.73 | |
| 13 | 2670-220 | NIPPLE,OIL TANK-OIL FEED | 1 | $37.95 | |
| 14 | 2670-290 | O-RING,OIL TANK(2-120) | 1 | $0.95 | |
| 20 | 2670-532 | TUBE,DIP-OIL TANK | 1 | $17.87 | |
| 21 | 2670-534 | BREATHER,OIL TANK | 1 | $24.77 | |
| 24 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 30 | 1610-005 | HOSE,OIL-ENGINE OUTLET/RETURN TUBE | 1 | $15.11 | |
| 31 | 2623-038 | CLAMP,HOSE-20/32 (NORMA) | 1 | $3.44 | |
| 32 | 3021-832 | VALVE,OIL-CUT OFF | 1 | $99.95 | |
| 34 | 2623-088 | CLAMP,HOSE-23/35 | 1 | $2.88 | |
| 35 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 36 | 1623-896 | SCREW,MAG FORM-TXPH-M6X2.0X15 Z&C | 1 | $2.75 | |
| 37 | 1610-035 | LOOM,PROTECTIVE-FIBERGLASS | 1 | $15.11 |
