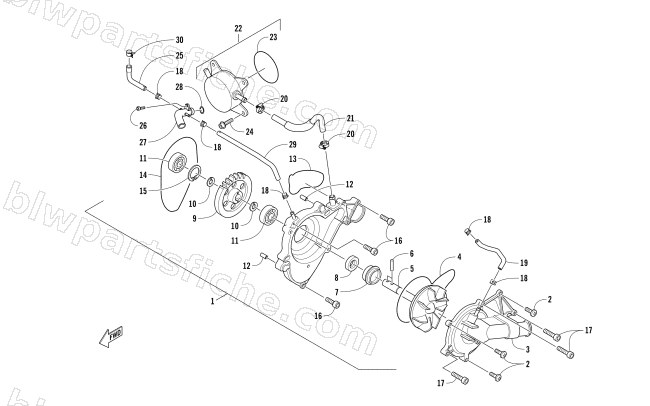

2018 Arctic Cat ZR 9000 THUNDERCAT 137 EARLY BUILD — WATER PUMP ASSEMBLY
2018 ZR 9000 THUNDERCAT 137 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3020-300 | PUMP,WATER-ASSEMBLY | 1 | $437.95 | |
| 2 | 3020-301 | SCREW,MACHINE-PPH | 1 | $3.16 | |
| 3 | 3020-302 | COVER, HOUSING | 1 | $60.95 | |
| 4 | 3020-303 | SEAL, HOUSING COVER | 1 | $19.25 | |
| 5 | 3020-304 | IMPELLER SHAFT ASSY | 1 | $37.95 | |
| 6 | 3020-305 | PIN, DOWEL | 1 | $2.88 | |
| 7 | 3020-306 | SEAL, MECHANICAL | 1 | $49.95 | |
| 8 | 3020-307 | OIL SEAL(SD 10-21-5 HS) | 1 | $16.49 | |
| 9 | 3020-308 | GEAR, IMPELLER SHAFT | 1 | $79.95 | |
| 10 | 3020-309 | RING, RETAINING | 1 | $2.88 | |
| 11 | 3020-310 | BEARING | 1 | $26.95 | |
| 12 | 3020-293 | PIN, DOWEL | 1 | $6.75 | |
| 13 | 3020-311 | SEAL | 1 | $3.57 | |
| 14 | 3020-312 | SEAL | 1 | $15.11 | |
| 15 | 3020-313 | RING,RETAINING | 1 | $2.88 | |
| 16 | 3020-314 | SCREW,CAP-HSH | 1 | $4.26 | |
| 17 | 3020-315 | SCREW,CAP-HSH | 1 | $3.16 | |
| 18 | 3020-316 | CLAMP,HOSE | 1 | $6.06 | |
| 20 | 3020-318 | CLAMP,HOSE | 1 | $8.21 | |
| 21 | 3020-319 | HOSE, COOLANT - WATER PUMP/OIL COOLER | 1 | $22.01 | |
| 22 | 3020-320 | COOLER, OIL - ASSEMBLY | 1 | $642.95 | |
| 23 | 3020-321 | O-RING | 1 | $37.95 | |
| 24 | 3020-322 | SCREW,CAP-HSH | 1 | $3.44 | |
| 26 | 3020-167 | SCREW,CAP-HSH | 1 | $4.26 | |
| 28 | 3020-325 | O-RING | 1 | $5.37 |
