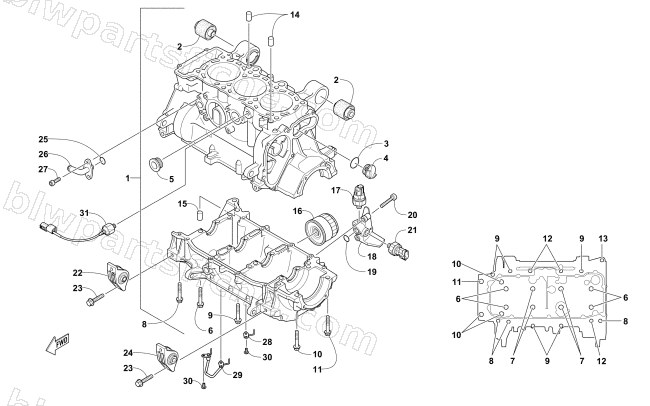

CRANKCASE ASSEMBLY
2018 ZR 9000 THUNDERCAT 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3020-609 | CRANKCASE ASSY | 1 | $3,658.95 | |
| 2 | 3020-139 | MOUNT, ENGINE-REAR | 1 | $68.95 | |
| 3 | 3020-140 | O-RING | 1 | $15.11 | |
| 4 | 3020-141 | PLUG | 1 | $12.35 | |
| 5 | 3020-142 | PLUG | 1 | $5.37 | |
| 6 | 3020-143 | SCREW, CAP-HFH | 1 | $13.73 | |
| 7 | 3020-144 | SCREW, CAP | 1 | $13.73 | |
| 8 | 3020-145 | SCREW, CAP-HFH | 1 | $3.16 | |
| 9 | 3020-146 | SCREW, CAP-HFH | 1 | $3.44 | |
| 10 | 3020-147 | SCREW, CAP-HFH | 1 | $3.16 | |
| 11 | 3020-148 | SCREW, CAP-HFH | 1 | $3.16 | |
| 12 | 3020-149 | SCREW, CAP | 1 | $3.44 | |
| 13 | 3020-150 | SCREW, CAP | 1 | $6.89 | |
| 14 | 3020-128 | R/B 3020-151 | 1 | $3.95 | |
| 15 | 3020-155 | PIN, DOWEL | 1 | $6.06 | |
| 16 | 3020-156 | FILTER,OIL | 1 | $30.95 | |
| 17 | 3020-157 | SWITCH, OIL PRESSURE | 1 | $96.95 | |
| 18 | 3020-158 | HOUSING, SENSOR | 1 | $58.95 | |
| 19 | 3020-159 | O-RING | 1 | $3.57 | |
| 20 | 3020-160 | SCREW, CAP-HSH | 1 | $3.44 | |
| 21 | 3020-161 | SENSOR, OIL PRESSURE | 1 | $421.95 | |
| 22 | 3020-162 | MOUNT, ENGINE-FRONT RH | 1 | $200.95 | |
| 23 | 3020-163 | SCREW, CAP | 1 | $4.26 | |
| 24 | 3020-164 | MOUNT, ENGINE-FRONT LH | 1 | $200.95 | |
| 25 | 3020-165 | O-RING | 1 | $5.37 | |
| 26 | 3020-403 | FITTING,OIL-OUTLET | 1 | $45.95 | |
| 27 | 3020-167 | SCREW,CAP-HSH | 1 | $4.26 | |
| 31 | 3020-401 | KNOCK SENSOR-ASSY | 1 | $213.95 |
