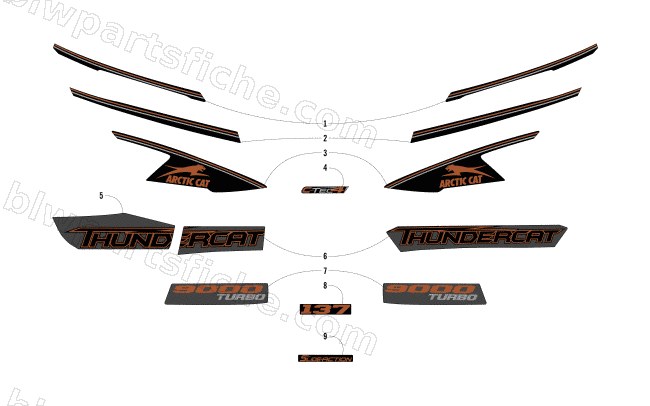

2018 Arctic Cat ZR 9000 THUNDERCAT 137 — DECALS
2018 ZR 9000 THUNDERCAT 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4621-084 | DECAL,SIDE PANEL-UPR RH | 1 | $17.87 | |
| 1 | 4621-085 | DECAL,SIDE PANEL-UPR LH | 1 | $17.87 | |
| 2 | 4621-088 | DECAL,HOOD-REAR UPR-RH | 1 | $37.95 | |
| 2 | 4621-089 | DECAL,HOOD-REAR UPR-LH | 1 | $37.95 | |
| 3 | 4621-090 | DECAL,HOOD-FWD UPR-RH | 1 | $34.95 | |
| 3 | 4621-091 | DECAL,HOOD-FWD UPR-LH | 1 | $34.95 | |
| 4 | 3621-651 | DECAL,CTEC4-COPPER | 1 | $7.85 | |
| 5 | 3621-612 | DECAL,SIDE PANEL-REAR UPR-RH | 1 | $19.25 | |
| 6 | 3621-682 | DECAL,SIDE PANEL-VENT LWR-RH | 1 | $56.95 | |
| 6 | 3621-643 | DECAL,SIDE PANEL-UPR FWD-LH | 1 | $15.11 | |
| 7 | 4621-086 | DECAL,SIDE PANEL-LWR FWD-RH 9000 | 1 | $17.87 | |
| 7 | 4621-087 | DECAL,SIDE PANEL-LWR FWD-LH 9000 | 1 | $17.87 | |
| 8 | 3621-677 | DECAL,TUNNEL-137" | 1 | $16.49 | |
| 9 | 3621-679 | DECAL,SLIDE ACTION-COPPER | 1 | $39.95 |
