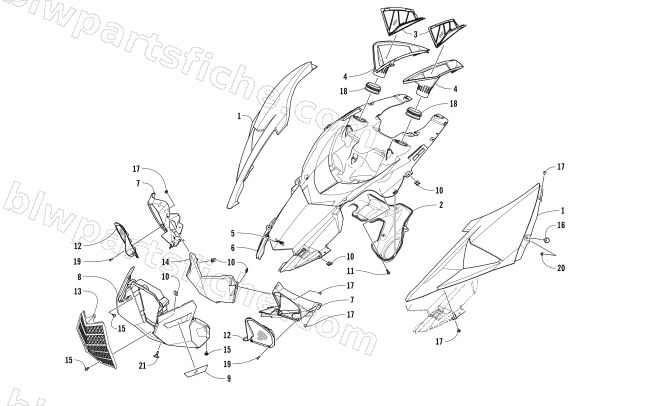

2018 Arctic Cat ZR 9000 THUNDERCAT 137 — HOOD ASSEMBLY
2018 ZR 9000 THUNDERCAT 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5718-674 | HOOD,MAIN-RH BLK-W/DECALS (9000 TC) | 1 | $201.95 | |
| 1 | 5718-675 | HOOD,MAIN-LH BLK-W/DECALS (9000 TC) | 1 | $201.95 | |
| 5 | 4411-479 | EMBLEM,AIRCAT | 1 | $5.95 | |
| 10 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 11 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 16 | 2623-003 | STUD,1/4 TURN-16MM | 1 | $19.95 | |
| 18 | 6606-386 | SEAL,UPPER PLENUM | 1 | $3.57 | |
| 20 | 2623-004 | RETAINER,RING-SPLIT | 1 | $4.95 | |
| 21 | 1423-060 | SCREW,SHOULDER TSTRH M6X1.0X25 RIE BL | 1 | $5.51 |
