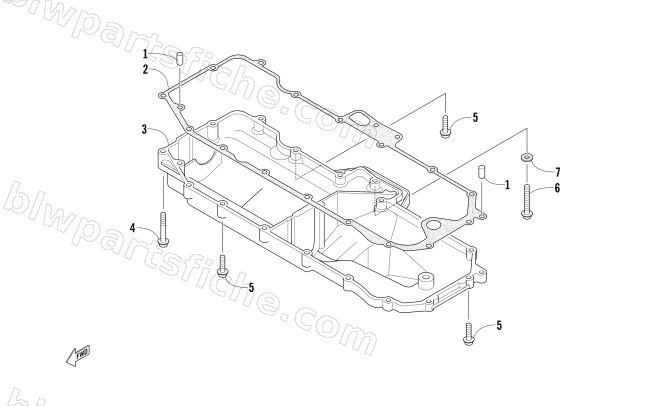

2018 Arctic Cat ZR 9000 THUNDERCAT 137 — OIL PAN ASSEMBLY
2018 ZR 9000 THUNDERCAT 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3020-293 | PIN, DOWEL | 1 | $6.75 | |
| 5 | 3020-314 | SCREW,CAP-HSH | 1 | $4.26 | |
| 6 | 3020-298 | SCREW,CAP-HSH | 1 | $12.35 | |
| 7 | 3020-299 | GASKET | 1 | $3.02 |
