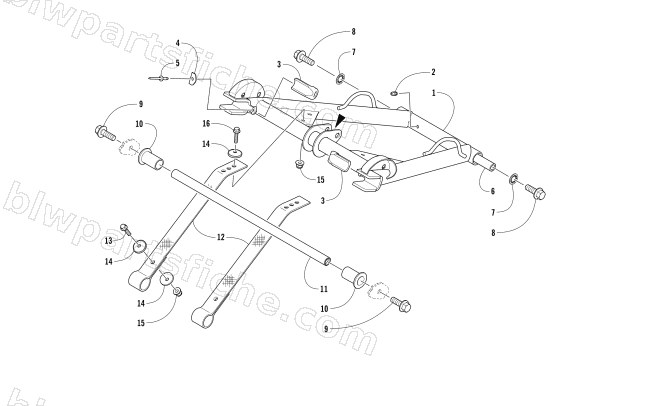

REAR SUSPENSION FRONT ARM ASSEMBLY
2018 ZR 9000 THUNDERCAT 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 3 | 3604-141 | BUMPER,SLIDER-FRONT | 1 | $4.26 | |
| 4 | 3604-968 | PLATE,RETAINING-SLIDER BUMPER | 1 | $2.75 | |
| 5 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 7 | 1623-992 | WASHER,LOCK-M10 INTL TOOTH TYP J Z&C | 1 | $0.26 | |
| 8 | 8413-031 | SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353 | 1 | $2.61 | |
| 9 | 8408-041 | SCREW,CAP-HFH M10X1.25X40 CL8.8 W/2353 | 1 | $0.95 | |
| 10 | 3604-233 | BUSHING,FRONT SLIDER | 1 | $17.87 | |
| 11 | 3604-663 | AXLE,FRONT ARM-15.88 OD X 394.2 | 1 | $49.95 | |
| 12 | 3604-823 | STRAP,LIMITER-FRT ARM-401MM | 1 | $15.11 | |
| 13 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 14 | 8450-109 | WASHER,FLAT M6-6.87X25.4X2.32 Z&Y | 1 | $0.68 | |
| 15 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 16 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 |
