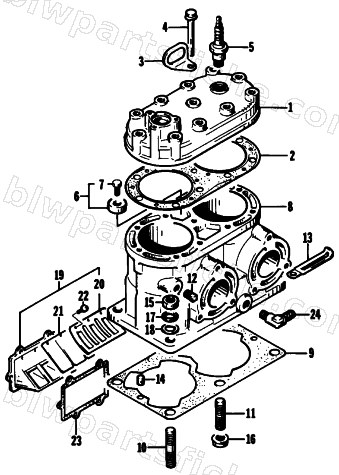

1993 Arctic Cat TIGERSHARK DAYTONA — CYLINDER
1993 TIGERSHARK DAYTONA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-481 | HEAD, CYLINDER PJ640 | 1 | $833.95 | |
| 2 | 3008-436 | GASKET, HEAD-640CC | 1 | $54.95 | |
| 3 | 3008-059 | HOOK, ENGINE | 1 | $12.35 | |
| 4 | 3008-206 | BOLT, 8X55 | 1 | $5.95 | |
| 5 | 0217-700 | SPARK PLUG BR9ES {SOLID} | 1 | $4.54 | |
| 6 | 3008-047 | ZINC, CYLINDER | 1 | $25.79 | |
| 7 | 3008-013 | BOLT, 6X14 | 1 | $2.79 | |
| 8 | 3008-368 | CYLINDER (TIGERSHARK) | 1 | $2,101.95 | |
| 9 | 3008-050 | GASKET, CYLINDER | 1 | $39.95 | |
| 10 | 3008-005 | BOLT, STUD, L:30,10MM | 1 | $5.95 | |
| 11 | 3008-394 | BOLT, CYLINDER STUD-M10X25 | 1 | $5.29 | |
| 12 | 3008-377 | PLUG,4MM | 1 | $13.73 | |
| 13 | 3008-358 | CLAMP,M10 | 1 | $3.49 | |
| 14 | 3008-146 | PIN, KNOCK(ALIGNMENT) | 1 | $2.99 | |
| 15 | 3008-209 | NUT,10MM | 1 | $3.16 | |
| 16 | 3008-208 | NUT,10MM | 1 | $4.19 | |
| 17 | 3008-207 | WASHER, LOCK,10MM | 1 | $3.59 | |
| 18 | 3004-363 | R/B 3004-278 | 1 | $0.89 | |
| 21 | 3008-075 | VALVE, REED | 1 | $32.95 | |
| 22 | 3004-210 | SCREW, REED VALVE-M3X8 | 1 | $4.95 | |
| 23 | 3005-432 | GASKET, REED VALVE | 1 | $17.87 | |
| 24 | 3008-092 | UNION, COOLING HOSE | 1 | $82.95 | |
| 25 | 3008-089 | CAP, THERMOSTAT | 1 | $94.95 | |
| 25 | 0636-070 | SEALANT,CRANKCASE(3-BOND) | 1 | $32.95 | |
| 26 | 3008-216 | BOLT, 6X16 | 1 | $4.49 | |
| 26 | 3008-142 | GASKET SET, ENGINE(640 & 644) | 1 | $267.95 |
