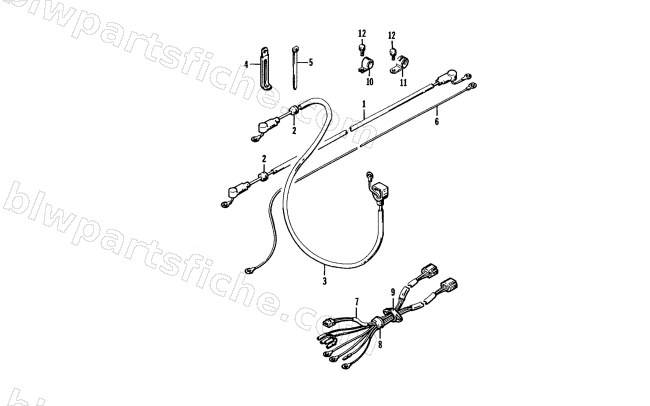

1993 Arctic Cat TIGERSHARK DAYTONA — WIRING HARNESS ASSEMBLY
1993 TIGERSHARK DAYTONA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-130 | CABLE, STARTING MOTOR | 1 | $102.95 | |
| 2 | 3008-115 | GROMMET | 1 | $9.59 | |
| 3 | 3008-131 | CABLE, BATTERY | 1 | $89.95 | |
| 5 | 3008-044 | CLAMP, L:125,M14 | 1 | $2.69 | |
| 6 | 3008-154 | CABLE, GROUND | 1 | $66.95 | |
| 8 | 3008-117 | GROMMET, WIRING HARNESS | 1 | $10.95 | |
| 9 | 3008-126 | HOLDER, GROMMET | 1 | $10.59 | |
| 10 | 3008-041 | CLAMP,M14 | 1 | $6.79 | |
| 11 | 3008-042 | CLAMP,M26 | 1 | $5.59 | |
| 12 | 3008-006 | BOLT, 6X15 | 1 | $3.99 |
