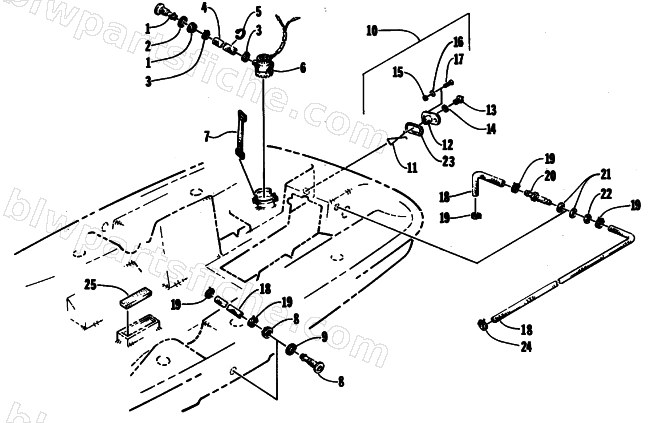

1993 Arctic Cat TIGERSHARK — BILGE PUMP AND COOLANT ASSEMBLY
1993 TIGERSHARK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0673-002 | OUTLET,BILGE-3/4 DIA | 1 | $8.79 | |
| 3 | 0624-018 | CLAMP,HOSE-6712-5 (1/2-1 1/4) #12 | 1 | $3.29 | |
| 4 | 0610-202 | HOSE,BILGE-3/4 X 15' | 1 | $65.95 | |
| 5 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 6 | 0673-012 | PUMP, BILGE | 1 | $72.59 | |
| 7 | 0673-128 | TIEDOWN,RUBBER-5.50 | 1 | $10.97 | |
| 8 | 0673-001 | OUTLET,WATER-1/2 DIA | 1 | $17.87 | |
| 10 | 0773-026 | DRAIN PLUG ASSY. | 1 | $18.29 | |
| 11 | 0624-118 | WIRE FORM-DRAINPLUG | 1 | $1.59 | |
| 14 | 0612-365 | O-RING (-210) 3/4X1X1/8 | 1 | $3.09 | |
| 15 | 0624-131 | NUT,LOCK-3MM | 1 | $1.09 | |
| 16 | 0624-130 | WASHER FLAT 3MM | 1 | $0.22 | |
| 17 | 0624-129 | SCREW MACH. PHFH 3MM X20MM | 1 | $0.35 | |
| 18 | 0610-106 | HOSE, WATER LINE, .5" X 25' | 1 | $90.95 | |
| 19 | 0624-016 | CLAMP,HOSE-6708-5 (7/16-1) #8 | 1 | $2.99 | |
| 20 | 0673-022 | FITTING,HULL (BULKHEAD) | 1 | $14.29 | |
| 21 | 0624-116 | WASHER,FLAT 5/8 (SS) | 1 | $0.97 | |
| 22 | 0624-117 | NUT,5/8-18 (BRASS) | 1 | $3.89 | |
| 23 | 0612-366 | SEAL,RETAINER-DRAINPLUG | 1 | $0.65 | |
| 24 | 0624-121 | CLAMP,HOSE-#6 62606 5/16-7/8 (SS) | 1 | $1.39 |
