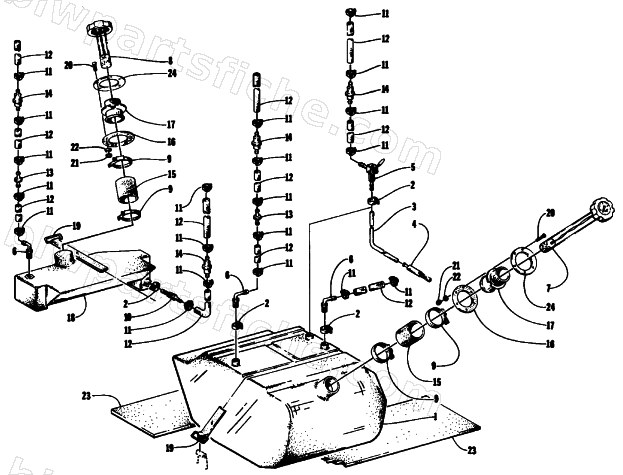

1993 Arctic Cat TIGERSHARK — GAS AND OIL TANK ASSEMBLY
1993 TIGERSHARK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-094 | GAS TANK ASS'Y | 1 | $545.95 | |
| 2 | 0624-016 | CLAMP,HOSE-6708-5 (7/16-1) #8 | 1 | $2.99 | |
| 3 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 3 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 4 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 5 | 0670-125 | VALVE,SHUT-OFF (90 DEG -THREADED) | 1 | $49.95 | |
| 8 | 0670-287 | CAP,OIL-W/GAUGE | 1 | $61.59 | |
| 9 | 0624-037 | CLAMP,HOSE-6736-5 (SS) 7/8 -2-3/4 | 1 | $5.29 | |
| 10 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 11 | 0624-120 | CLAMP,HOSE (SNP06) | 1 | $2.19 | |
| 12 | 0610-107 | HOSE, GAS LINE, 25' | 1 | $223.95 | |
| 13 | 0610-121 | VALVE,CHECK-GASTANK (A290 1/4 HF) | 1 | $13.73 | |
| 14 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 15 | 0710-109 | HOSE,FILL-2 ID X 12 (GAS/OIL) | 1 | $36.79 | |
| 17 | 0470-970 | NECK,FILL-REMOTE | 1 | $10.97 | |
| 18 | 0670-268 | TANK,OIL | 1 | $278.95 | |
| 19 | 0673-390 | TIEDOWN,RUBBER-23 | 1 | $17.95 | |
| 20 | 0624-031 | SCREW,MACH. PHFH 5MM.8TX20MM (SS) | 1 | $1.39 | |
| 21 | 0624-005 | NUT,LOCK-M5-.8 (SS) | 1 | $1.19 | |
| 22 | 0624-004 | WASHER,FLAT-M5 (SS) | 1 | $0.44 | |
| 23 | 0673-307 | PAD,GASTANK-LH | 1 | $30.95 |
