1993 Arctic Cat TIGERSHARK — THERMOSTAT
1993 TIGERSHARK
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

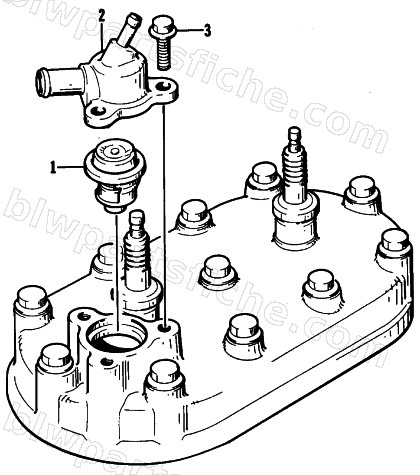

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-088 | THERMOSTAT, WATER (50 DEG C) | 1 | $128.95 | |
| 2 | 3008-089 | CAP, THERMOSTAT | 1 | $94.95 | |
| 3 | 3008-216 | BOLT, 6X16 | 1 | $4.49 |
