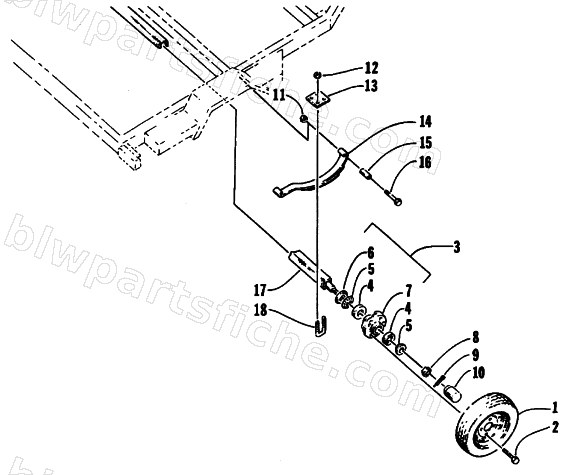

1993 Arctic Cat TRAILER — WHEEL ASSEMBLY
1993 TRAILER
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0696-181 | TIRE, SPARE-4.80X8 LRB -4 LUG | 1 | $108.95 | |
| 3 | 0696-020 | HUB ASSY,BT100 | 1 | $57.79 | |
| 4 | 0696-033 | RACE - L44610 | 1 | $5.33 | |
| 6 | 0696-034 | SEAL,GREASE-1 | 1 | $3.16 | |
| 13 | 0696-104 | U-BOLT PLATE 3/8 | 1 | $5.33 | |
| 16 | 0696-021 | BOLT,SHACKLE | 1 | $2.15 | |
| 18 | 0696-043 | U-BOLT, SQUARE - 3/8-24 | 1 | $11.95 |
