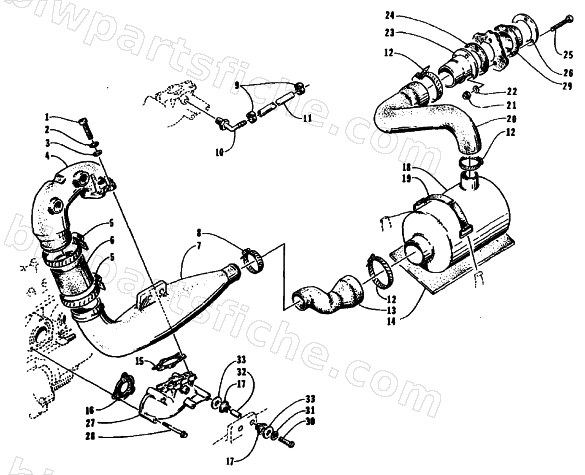

1994 Arctic Cat BARRACUDA — EXHAUST ASSEMBLY
1994 BARRACUDA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0624-157 | SCREW,CAP-HSH 8MM 1.25 X 30MM SS | 1 | $2.39 | |
| 2 | 0624-027 | WASHER,LOCK-SL 8MM SS | 1 | $0.44 | |
| 3 | 0624-028 | WASHER,FLAT-8MM SS | 1 | $0.40 | |
| 4 | 0612-463 | PIPE,EXHAUST REF:0673-415 | 1 | $1,009.95 | |
| 5 | 0624-236 | CLAMP,HOSE COUPLER REF:0673-415 | 1 | $14.95 | |
| 6 | 0610-180 | HOSE,EXHAUST COUPLER REF:0673-415 | 1 | $43.59 | |
| 7 | 0612-464 | CHAMBER,EXPANSION REF:0673-415 | 1 | $926.95 | |
| 8 | 0624-038 | CLAMP,HOSE-6728-5 (1 5/16-2 1/4) #28 | 1 | $4.49 | |
| 9 | 0623-502 | CLAMP,HOSE (SNP01.5) | 1 | $1.59 | |
| 12 | 0624-018 | CLAMP,HOSE-6712-5 (1/2-1 1/4) #12 | 1 | $3.29 | |
| 15 | 3008-385 | GASKET,EXHAUST PIPE | 1 | $39.95 | |
| 16 | 3008-384 | GASKET,EXHAUST MANIFOLD | 1 | $29.95 | |
| 17 | 0612-466 | BUSHING,MOUNTING REF: 0673-415 | 1 | $19.95 | |
| 18 | 0712-128 | MUFFLER- WELDT | 1 | $525.95 | |
| 19 | 0673-392 | TIEDOWN,RUBBER-13 | 1 | $17.87 | |
| 20 | 0610-145 | HOSE,EXHAUST (OUT) | 1 | $159.95 | |
| 21 | 0624-005 | NUT,LOCK-M5-.8 (SS) | 1 | $1.19 | |
| 22 | 0624-004 | WASHER,FLAT-M5 (SS) | 1 | $0.44 | |
| 23 | 0673-135 | OUTLET,EXHAUST | 1 | $92.95 | |
| 24 | 0612-391 | SEAL, EXHAUST OUTLET | 1 | $21.95 | |
| 25 | 0624-102 | SCREW,CAP HH 5MM .8TX25MM(SS) | 1 | $1.19 | |
| 26 | 0673-451 | RING,BOLT-EXHAUST DEFLECTOR | 1 | $24.77 | |
| 27 | 3008-195 | MANIFOLD, EXHAUST | 1 | $1,047.95 | |
| 29 | 0673-436 | DEFLECTOR,EXHAUST | 1 | $51.95 | |
| 30 | 0624-238 | SCREW,CAP-HH M10 X 1.25P X 45 (SS) | 1 | $25.29 | |
| 31 | 3008-021 | WASHER, LOCK,10MM | 1 | $2.79 | |
| 32 | 0612-465 | SLEEVE,MOUNTING REF:0673-415 | 1 | $17.95 | |
| 33 | 0624-253 | WASHER,FLAT-7/16 X 1 (SS) | 1 | $1.79 |
