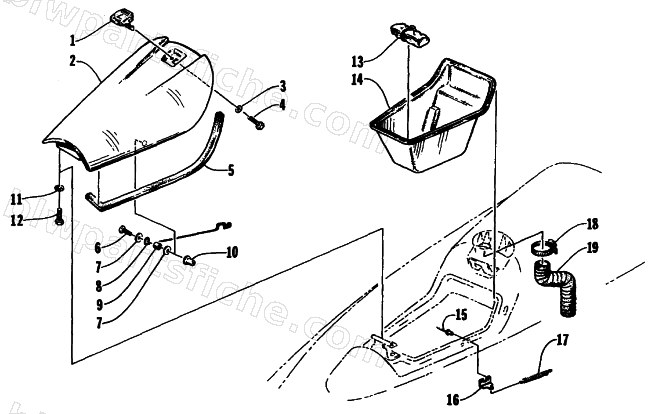

1994 Arctic Cat BARRACUDA — HATCH COVER AND STORAGE TRAY
1994 BARRACUDA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0673-177 | LATCH,STORAGE COMPARTMENT | 1 | $49.95 | |
| 3 | 0624-004 | WASHER,FLAT-M5 (SS) | 1 | $0.44 | |
| 4 | 0624-092 | SCREW,CAP HH 5MM .8TX20MM (SS) | 1 | $1.29 | |
| 5 | 0673-194 | SEAL,STORAGE TRAY | 1 | $26.59 | |
| 7 | 0624-182 | WASHER,FLAT-6.4MM ID X 18MM OD X 1.6T (S | 1 | $0.52 | |
| 8 | 0773-221 | WELDMENT-HOOD PROP ROD | 1 | $10.29 | |
| 12 | 0624-046 | SCREW,CAP-HH 6MM-1.0X16MM SS | 1 | $1.19 | |
| 14 | 0673-199 | TRAY STORAGE | 1 | $50.79 | |
| 15 | 0624-069 | RIVET,SS/SS56D | 1 | $0.35 | |
| 16 | 0673-397 | BRACKET,SPRING ROD | 1 | $10.59 | |
| 17 | 0673-400 | SPRING,HOOD PROP | 1 | $5.95 |
