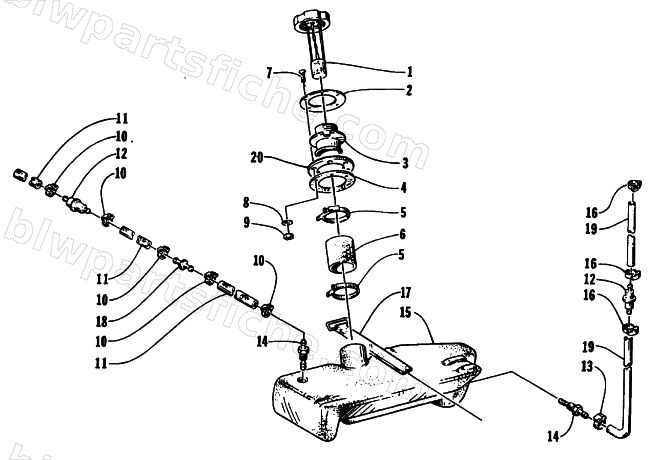

1994 Arctic Cat DAYTONA — OIL TANK ASSEMBLY
1994 DAYTONA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0670-287 | CAP,OIL-W/GAUGE | 1 | $61.59 | |
| 3 | 0470-970 | NECK,FILL-REMOTE | 1 | $10.97 | |
| 5 | 0624-037 | CLAMP,HOSE-6736-5 (SS) 7/8 -2-3/4 | 1 | $5.29 | |
| 6 | 0710-109 | HOSE,FILL-2 ID X 12 (GAS/OIL) | 1 | $36.79 | |
| 7 | 0624-220 | SCREW,MACH-PHFH M5 X 25 (DIN965A A2) | 1 | $1.09 | |
| 8 | 0624-004 | WASHER,FLAT-M5 (SS) | 1 | $0.44 | |
| 9 | 0624-005 | NUT,LOCK-M5-.8 (SS) | 1 | $1.19 | |
| 10 | 0624-120 | CLAMP,HOSE (SNP06) | 1 | $2.19 | |
| 11 | 0610-107 | HOSE, GAS LINE, 25' | 1 | $223.95 | |
| 12 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 13 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 14 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 15 | 0670-422 | TANK,OIL | 1 | $136.95 | |
| 16 | 0623-502 | CLAMP,HOSE (SNP01.5) | 1 | $1.59 | |
| 17 | 0673-390 | TIEDOWN,RUBBER-23 | 1 | $17.95 | |
| 19 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 20 | 0673-507 | SPACER,FILLER NECK-GAS TANK | 1 | $6.59 |
