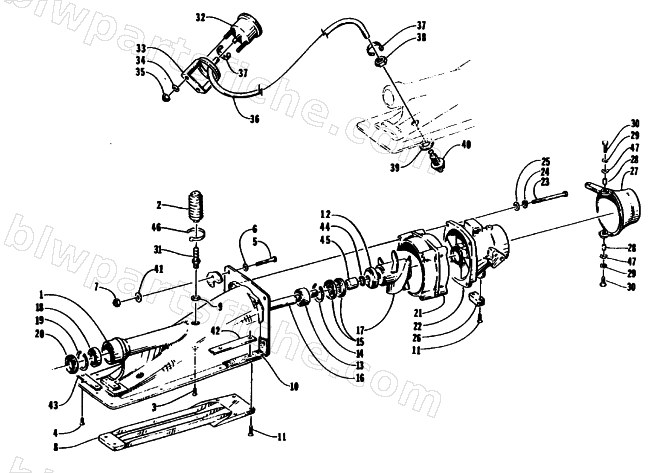

1994 Arctic Cat MONTE CARLO — IMPELLER DRIVE ASSEMBLY
1994 MONTE CARLO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0673-369 | INLET,PUMP | 1 | $1,503.95 | |
| 3 | 0624-091 | SCREW,MACH PHPNH 6MM 1.0TX15MM (SS) | 1 | $2.19 | |
| 4 | 0624-186 | SCREW,MACH-TSFH 6MM-1.0 X 35MM (SS) | 1 | $2.19 | |
| 5 | 0624-007 | SCREW,CAP-HH 10MM 1.5TX35MM SS | 1 | $4.59 | |
| 6 | 0624-008 | WASHER,FLAT-10MM SS | 1 | $0.69 | |
| 9 | 0624-106 | WASHER,FLAT 7/16 (SS) | 1 | $2.09 | |
| 10 | 0612-370 | SEAL,PUMP INLET BASE | 1 | $35.95 | |
| 12 | 0673-364 | SPACER, IMPELLER-SHAFT | 1 | $63.59 | |
| 13 | 0673-032 | BEARING,REARPUMP(KOYO5303) | 1 | $165.95 | |
| 14 | 0624-044 | SNAPRING-REAR -PUMP-SS(N1300-187) | 1 | $37.95 | |
| 15 | 0673-033 | SEAL,REAR-PUMP 25X47X7 | 1 | $22.95 | |
| 16 | 0673-363 | DRIVESHAFT-STAINLESS STEEL | 1 | $178.59 | |
| 18 | 0673-030 | BEARING,FRONT-PUMP {62/22RKB} | 1 | $52.95 | |
| 19 | 0624-043 | SNAPRING-FRONT PUMP-SS(N1300-193) | 1 | $29.95 | |
| 20 | 0673-031 | SEAL,FRONT-PUMP 22X50X10 | 1 | $23.59 | |
| 21 | 0673-126 | WEAR RING W/SS. SLEEVE | 1 | $675.95 | |
| 22 | 0673-219 | VENTURI,STATOR | 1 | $429.79 | |
| 23 | 0624-045 | SCREW,CAP-HH 8MM-1.25TX110MM SS | 1 | $14.79 | |
| 24 | 0624-027 | WASHER,LOCK-SL 8MM SS | 1 | $0.44 | |
| 25 | 0624-028 | WASHER,FLAT-8MM SS | 1 | $0.40 | |
| 26 | 0624-084 | ZINC ANODES | 1 | $28.59 | |
| 27 | 0673-548 | NOZZLE,STEERING | 1 | $166.59 | |
| 28 | 0673-083 | BUSHING,STEERING NOZZLE | 1 | $5.29 | |
| 30 | 0624-046 | SCREW,CAP-HH 6MM-1.0X16MM SS | 1 | $1.19 | |
| 32 | 0620-124 | SPEEDOMETER,US-WATERCRAFT | 1 | $339.95 | |
| 33 | 0620-126 | BACKCLAMP,SPEEDOMETER-WATERCRAFT | 1 | $4.40 | |
| 34 | 0624-242 | WASHER,FLAT | 1 | $0.33 | |
| 35 | 0624-241 | NUT,BRASS 10-32 | 1 | $0.32 | |
| 36 | 0673-809 | TUBING,VINYL-20FT | 1 | $39.95 | |
| 37 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 41 | 0624-159 | WASHER,FLAT-FENDER 10MM 1 3/8 OD (SS) | 1 | $2.99 | |
| 47 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 |
