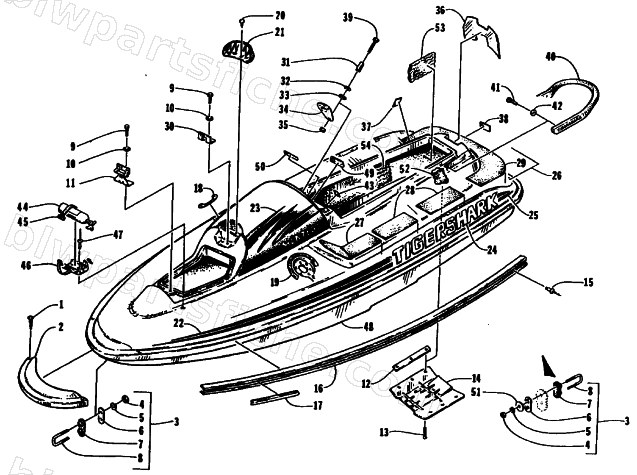

1994 Arctic Cat MONTEGO DELUXE — HULL AND DECK ASSEMBLY
1994 MONTEGO DELUXE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0623-453 | CLIP,CHRISTMAS TREE (ARDEN 08-81291) | 1 | $1.79 | |
| 3 | 0624-002 | EYEHOOK-ASSY.1 1/2 | 1 | $61.29 | |
| 4 | 0624-149 | NUT, HEX 8MM-1.25 SS | 1 | $3.09 | |
| 5 | 0624-027 | WASHER,LOCK-SL 8MM SS | 1 | $0.44 | |
| 6 | 0624-150 | PLATE, SUPPORT-EYEHOOK | 1 | $18.29 | |
| 7 | 0624-165 | GASKET, RUBBER-EYE HOOK (1-1/2 ) | 1 | $10.59 | |
| 9 | 0624-092 | SCREW,CAP HH 5MM .8TX20MM (SS) | 1 | $1.29 | |
| 10 | 0624-200 | WASHER,LOCK-M5 (SS) | 1 | $0.71 | |
| 11 | 0673-781 | HINGE,HOOD-ASSY | 1 | $33.59 | |
| 12 | 0673-006 | PLATE,NUT 8.10 (SS) | 1 | $26.59 | |
| 13 | 0624-184 | SCREW,MACH-TSFH 6MM-1.0 X 25MM (SS) | 1 | $2.19 | |
| 14 | 0673-207 | RIDE PLATE-CAST | 1 | $157.29 | |
| 15 | 0624-030 | RIVET,SS/SS610LF | 1 | $2.19 | |
| 16 | 0673-216 | TRIM,269" BLACK-EDGE-SIDE-CTL | 1 | $150.59 | |
| 17 | 0673-217 | INSERT,TRIM-PURPLE-269" | 1 | $133.95 | |
| 20 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 22 | 0614-034 | DECAL,DECK FRONT-RH | 1 | $85.79 | |
| 22 | 0614-035 | DECAL,DECK FRONT-LH | 1 | $85.79 | |
| 24 | 0614-038 | DECAL,DECK TIGERSHARK (BLUE TEAL) | 1 | $43.95 | |
| 25 | 0614-036 | DECAL,DECK-REAR-RH | 1 | $8.29 | |
| 25 | 0614-037 | DECAL,DECK-REAR-LH | 1 | $8.29 | |
| 27 | 0673-340 | PAD,FOOT-FRONT RH | 1 | $22.79 | |
| 27 | 0673-341 | PAD,FOOT-FRONT LH | 1 | $24.59 | |
| 28 | 0673-304 | PAD,FOOT | 1 | $65.95 | |
| 29 | 0673-303 | PAD,FOOT-REAR | 1 | $101.79 | |
| 30 | 0673-342 | PAD,FOOT-REAR RH | 1 | $6.29 | |
| 30 | 0673-343 | PAD,FOOT-REAR LH | 1 | $15.11 | |
| 31 | 0673-485 | STOP,STEERING POST | 1 | $6.29 | |
| 32 | 0624-008 | WASHER,FLAT-10MM SS | 1 | $0.69 | |
| 33 | 0623-391 | WASHER,RUBBER 10MM ID | 1 | $5.79 | |
| 34 | 0673-417 | PLATE,BACKING-STEERING POST | 1 | $15.79 | |
| 37 | 0614-066 | DECAL,USCG EXEMPTION | 1 | $4.59 | |
| 39 | 0624-228 | WASHER,FLAT-.281X.625X.037 (SS) | 1 | $0.68 | |
| 40 | 0624-223 | SCREW,CAP-M10 X 60 (SS) DIN 931 | 1 | $5.59 | |
| 43 | 1611-866 | DECAL,WARNING-GAS VAPORS | 1 | $4.69 | |
| 44 | 0673-297 | CATCH,LATCH | 1 | $5.29 | |
| 46 | 0678-534 | EXTINGUISHER, FIRE - PWC | 1 | $23.95 | |
| 49 | 0673-128 | TIEDOWN,RUBBER-5.50 | 1 | $10.97 | |
| 51 | 0614-059 | DECAL, COMMON SENSE | 1 | $11.29 | |
| 52 | 0614-068 | DECAL,CHOKE | 1 | $4.79 |
