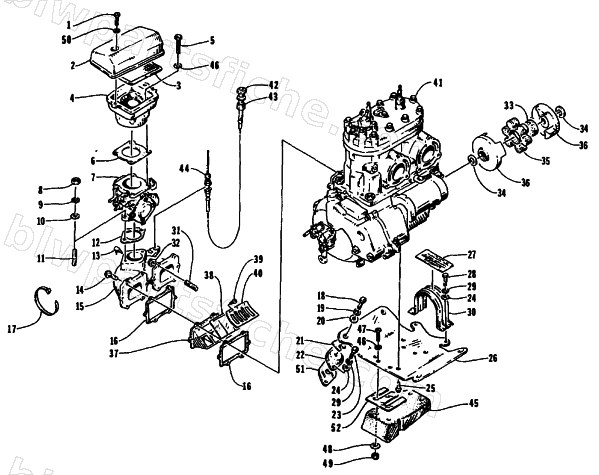

1994 Arctic Cat MONTEGO — ENGINE AND RELATED ASSEMBLY
1994 MONTEGO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0624-046 | SCREW,CAP-HH 6MM-1.0X16MM SS | 1 | $1.19 | |
| 3 | 3008-354 | SCREEN,SPARK ARRESTOR | 1 | $108.95 | |
| 4 | 0673-044 | SPARKARRESTOR-LOWER | 1 | $156.95 | |
| 6 | 0673-389 | GASKET,SPARK ARRESTOR | 1 | $1.79 | |
| 7 | 0670-325 | CARBURETOR BN44-40-54 (MIKUNI) | 1 | $630.59 | |
| 8 | 0624-061 | NUT,JAM 8MM 1.25T (SS) | 1 | $1.19 | |
| 9 | 0624-027 | WASHER,LOCK-SL 8MM SS | 1 | $0.44 | |
| 10 | 0624-028 | WASHER,FLAT-8MM SS | 1 | $0.40 | |
| 11 | 0624-051 | BOLT,STUD 8MM-1.25X1.50 (SS) | 1 | $4.19 | |
| 12 | 0673-057 | GASKET,INTAKE | 1 | $1.99 | |
| 14 | 3008-213 | SCREW,CAP-HWH M6X25 | 1 | $4.19 | |
| 15 | 0673-039 | MANIFOLD,INTAKE | 1 | $225.79 | |
| 16 | 3005-432 | GASKET, REED VALVE | 1 | $17.87 | |
| 17 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 18 | 3008-188 | BOLT,10MM | 1 | $12.95 | |
| 19 | 3008-021 | WASHER, LOCK,10MM | 1 | $2.79 | |
| 20 | 3008-016 | WASHER, 10.5X30X3.2 | 1 | $3.85 | |
| 21 | 0624-015 | SHIM-1.5MM/16 GA. SS | 1 | $2.69 | |
| 21 | 0624-014 | SHIM-.5MM/26 GA. SS | 1 | $2.29 | |
| 23 | 0624-087 | SCREW,CAP HH 8MM1.25TX35MM (SS) | 1 | $4.19 | |
| 25 | 3008-203 | BOLT, ENGINE PLATE-M10X30 | 1 | $4.95 | |
| 26 | 0608-142 | PLATE,ENG MTG-MACH | 1 | $690.95 | |
| 27 | 1611-608 | DECAL,NOTICE-SHAFT GUARD | 1 | $9.79 | |
| 28 | 3008-001 | BOLT, 8X16 | 1 | $4.89 | |
| 30 | 0673-506 | GUARD,COUPLER | 1 | $31.29 | |
| 31 | 3008-657 | BOLT,INTAKE MANIFOLD STUD-M6X20 | 1 | $2.95 | |
| 32 | 3008-158 | NUT-INTAKE MANIFOLD,6MM | 1 | $2.79 | |
| 33 | 0673-146 | PUCK,COUPLER RUBBER | 1 | $30.29 | |
| 34 | 0624-017 | WASHER,FLAT-18MM-HARDENED SS | 1 | $24.95 | |
| 36 | 3008-090 | COUPLER, ENGINE | 1 | $99.95 | |
| 38 | 3008-075 | VALVE, REED | 1 | $32.95 | |
| 39 | 3004-210 | SCREW, REED VALVE-M3X8 | 1 | $4.95 | |
| 41 | 0678-328 | KIT, ENGINE REPLACEMENT | 1 | $6,896.29 | |
| 42 | 0687-077 | CABLE,CHOKE | 1 | $97.95 | |
| 43 | 0687-051 | NUT, CHOKE CABLE MOUNT | 1 | $4.99 | |
| 44 | 0687-052 | COVER, BOOT | 1 | $5.78 | |
| 47 | 0624-052 | SCREW,CAP-HH-6MM-1.0TX35MM(SS) | 1 | $2.09 | |
| 49 | 0624-021 | NUT,LOCK-HEX6MM 1.0T SS | 1 | $0.78 | |
| 50 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 | |
| 51 | 0673-508 | SHIM,ENG MTG-.125 | 1 | $6.29 | |
| 51 | 0673-509 | SHIM,ENG MNT-.063 | 1 | $3.19 | |
| 52 | 0673-479 | SHIM,ENG SNUBBER.048(18GA) | 1 | $4.29 | |
| 52 | 0673-482 | SHIM,ENG SNUBBER (12GA) | 1 | $6.29 |
