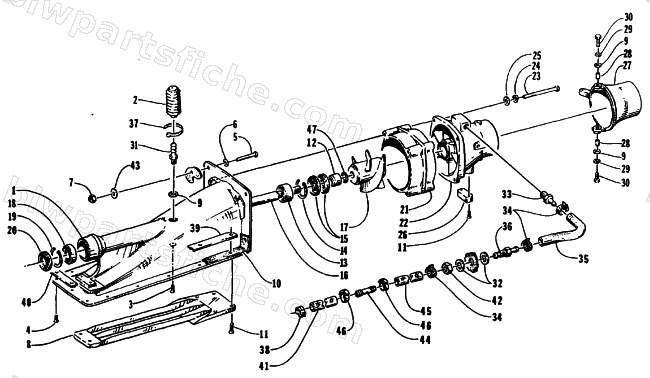

1994 Arctic Cat MONTEGO — IMPELLER DRIVE ASSEMBLY
1994 MONTEGO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0624-091 | SCREW,MACH PHPNH 6MM 1.0TX15MM (SS) | 1 | $2.19 | |
| 4 | 0624-186 | SCREW,MACH-TSFH 6MM-1.0 X 35MM (SS) | 1 | $2.19 | |
| 5 | 0624-007 | SCREW,CAP-HH 10MM 1.5TX35MM SS | 1 | $4.59 | |
| 6 | 0624-008 | WASHER,FLAT-10MM SS | 1 | $0.69 | |
| 8 | 0673-262 | GRATE,INLET 4 | 1 | $99.29 | |
| 9 | 0624-106 | WASHER,FLAT 7/16 (SS) | 1 | $2.09 | |
| 10 | 0612-370 | SEAL,PUMP INLET BASE | 1 | $35.95 | |
| 13 | 0673-032 | BEARING,REARPUMP(KOYO5303) | 1 | $165.95 | |
| 14 | 0624-044 | SNAPRING-REAR -PUMP-SS(N1300-187) | 1 | $37.95 | |
| 15 | 0673-033 | SEAL,REAR-PUMP 25X47X7 | 1 | $22.95 | |
| 16 | 0673-363 | DRIVESHAFT-STAINLESS STEEL | 1 | $178.59 | |
| 17 | 1773-043 | IMPELLER,SS-16.5(REPL.0673-263 AL) | 1 | $350.95 | |
| 18 | 0673-030 | BEARING,FRONT-PUMP {62/22RKB} | 1 | $52.95 | |
| 19 | 0624-043 | SNAPRING-FRONT PUMP-SS(N1300-193) | 1 | $29.95 | |
| 20 | 0673-031 | SEAL,FRONT-PUMP 22X50X10 | 1 | $23.59 | |
| 21 | 0673-126 | WEAR RING W/SS. SLEEVE | 1 | $675.95 | |
| 22 | 0673-264 | VENTURI,STATOR | 1 | $628.95 | |
| 23 | 0624-045 | SCREW,CAP-HH 8MM-1.25TX110MM SS | 1 | $14.79 | |
| 24 | 0624-027 | WASHER,LOCK-SL 8MM SS | 1 | $0.44 | |
| 25 | 0624-028 | WASHER,FLAT-8MM SS | 1 | $0.40 | |
| 26 | 0624-084 | ZINC ANODES | 1 | $28.59 | |
| 27 | 0673-038 | NOZZLE,STEERING-PUMP | 1 | $223.95 | |
| 28 | 0673-083 | BUSHING,STEERING NOZZLE | 1 | $5.29 | |
| 30 | 0624-046 | SCREW,CAP-HH 6MM-1.0X16MM SS | 1 | $1.19 | |
| 32 | 0624-116 | WASHER,FLAT 5/8 (SS) | 1 | $0.97 | |
| 33 | 0670-118 | OUTLET,OILTANK-1/2 TUBE | 1 | $4.95 | |
| 34 | 0624-016 | CLAMP,HOSE-6708-5 (7/16-1) #8 | 1 | $2.99 | |
| 35 | 0610-162 | HOSE,FORMED-VENTURI TO BULKHEAD | 1 | $19.59 | |
| 37 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 38 | 3008-235 | CLAMP,HOSE-EXPANDED,M14 | 1 | $6.29 | |
| 42 | 0624-117 | NUT,5/8-18 (BRASS) | 1 | $3.89 | |
| 43 | 0624-159 | WASHER,FLAT-FENDER 10MM 1 3/8 OD (SS) | 1 | $2.99 | |
| 44 | 0673-464 | COUPLER,HOSE-BARB 3/8 TO 3/8 (NYLON) | 1 | $1.79 | |
| 46 | 0623-365 | CLAMP,HOSE (SNP10) | 1 | $1.95 | |
| 47 | 0673-493 | O-RING,5/8 ID X 3/32 (-114) | 1 | $0.71 |
