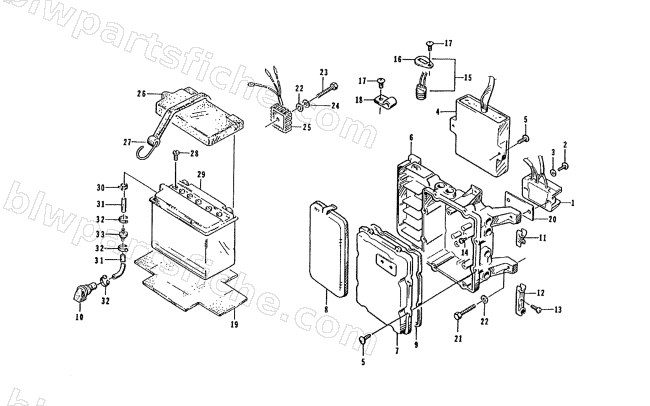

1995 Arctic Cat TIGERSHARK 900 — ELECTRICAL MODULE AND BATTERY
1995 TIGERSHARK 900
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-279 | REGULATOR/RECTIFIER | 1 | $589.95 | |
| 2 | 3008-375 | SCREW,6X25 | 1 | $2.19 | |
| 3 | 3008-337 | WASHER | 1 | $4.49 | |
| 4 | 3008-572 | CDI | 1 | $1,608.95 | |
| 5 | 3008-319 | SCREW,6X20 | 1 | $4.19 | |
| 6 | 3008-282 | CASE, ELECTRICAL | 1 | $87.59 | |
| 7 | 3008-283 | COVER,CASE | 1 | $66.95 | |
| 9 | 3008-285 | PACKING | 1 | $24.95 | |
| 11 | 3008-124 | HOLDER, GROMMET | 1 | $6.59 | |
| 12 | 3008-125 | HOLDER, GROMMET | 1 | $7.79 | |
| 13 | 3008-379 | SCREW,CAP-M5X16 | 1 | $1.99 | |
| 15 | 3008-660 | SENSOR ASSY,HEAT | 1 | $232.95 | |
| 16 | 3008-134 | SUPPORTER, ENGINE TEMP SNSR | 1 | $9.59 | |
| 17 | 3008-219 | SCREW, 6X10 | 1 | $4.59 | |
| 18 | 3008-040 | CLAMP, HEAT SENSOR,M12 | 1 | $1.92 | |
| 20 | 3008-336 | BASE,REGULATOR | 1 | $19.25 | |
| 21 | 0624-052 | SCREW,CAP-HH-6MM-1.0TX35MM(SS) | 1 | $2.09 | |
| 22 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 | |
| 23 | 0670-295 | VALVE,CHECK W/FILTER 3/16-3/16 | 1 | $22.01 | |
| 24 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 25 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 27 | 0773-382 | STRAP ASSY-8 5/8 | 1 | $54.29 | |
| 28 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 29 | 0645-157 | BATTERY,ES-12V 19AH-6.9 X 4.0 X 6.9 | 1 | $176.95 |
