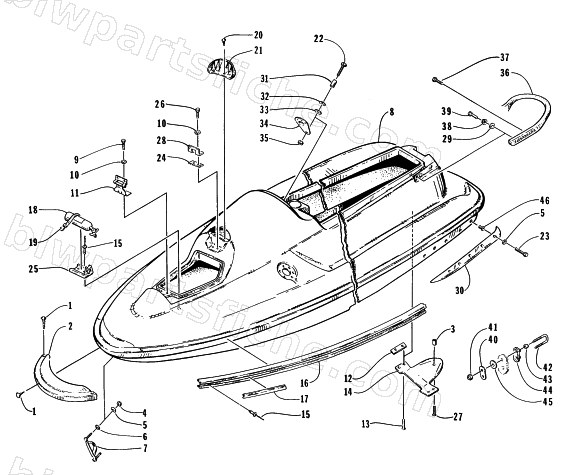

1995 Arctic Cat TIGERSHARK 900 — HULL AND RELATED PARTS ASSEMBLY
1995 TIGERSHARK 900
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0673-845 | SPACER,RIDE PLATE | 1 | $5.95 | |
| 4 | 0624-089 | NUT,LOCK-HH 1/4 20 (SS) | 1 | $1.39 | |
| 5 | 0624-247 | WASHER,FLAT (SS) .250X.562 | 1 | $0.75 | |
| 6 | 0624-299 | WASHER,SEALING-1/4 SS | 1 | $0.92 | |
| 7 | 0773-412 | BOWEYE-WELDMENT | 1 | $48.59 | |
| 8 | 0773-430 | HULL/DECK ASSY-95TGA-W | 1 | $5,255.29 | |
| 9 | 0624-112 | SCREW,CAP HH6MM 1.0TX25MM | 1 | $0.65 | |
| 11 | 0673-781 | HINGE,HOOD-ASSY | 1 | $33.59 | |
| 12 | 0673-688 | PLATE,NUT {2.18"X.75"} | 1 | $18.79 | |
| 13 | 0624-184 | SCREW,MACH-TSFH 6MM-1.0 X 25MM (SS) | 1 | $2.19 | |
| 14 | 0673-840 | RIDE PLATE | 1 | $128.95 | |
| 15 | 0624-030 | RIVET,SS/SS610LF | 1 | $2.19 | |
| 16 | 0673-322 | TRIM,EDGE-SIDE-CTL 274" | 1 | $127.59 | |
| 17 | 0673-778 | INSERT,TRIM-BLK-276 | 1 | $113.95 | |
| 19 | 0673-128 | TIEDOWN,RUBBER-5.50 | 1 | $10.97 | |
| 20 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 22 | 0624-223 | SCREW,CAP-M10 X 60 (SS) DIN 931 | 1 | $5.59 | |
| 23 | 0624-271 | SCREW,MACH-PHPNH-1/4-20 X 1 (SS) | 1 | $0.55 | |
| 24 | 0673-429 | SHIM,CATCH | 1 | $1.99 | |
| 26 | 0624-092 | SCREW,CAP HH 5MM .8TX20MM (SS) | 1 | $1.29 | |
| 27 | 0624-186 | SCREW,MACH-TSFH 6MM-1.0 X 35MM (SS) | 1 | $2.19 | |
| 28 | 0673-297 | CATCH,LATCH | 1 | $5.29 | |
| 29 | 0624-228 | WASHER,FLAT-.281X.625X.037 (SS) | 1 | $0.68 | |
| 30 | 0673-594 | SPONSON-RH-RED (USE 1773-049 BLACK) | 1 | $96.95 | |
| 30 | 0673-595 | SPONSON-LH-RED | 1 | $121.95 | |
| 31 | 0673-485 | STOP,STEERING POST | 1 | $6.29 | |
| 32 | 0624-008 | WASHER,FLAT-10MM SS | 1 | $0.69 | |
| 33 | 0623-391 | WASHER,RUBBER 10MM ID | 1 | $5.79 | |
| 34 | 0673-417 | PLATE,BACKING-STEERING POST | 1 | $15.79 | |
| 37 | 0624-230 | SCREW,CAP-HH 1/4-20 X 3/4-SS | 1 | $0.87 | |
| 38 | 0624-115 | WASHER,LOCK-SL .250 SS | 1 | $0.21 | |
| 39 | 0624-289 | SCREW,CAP-HH 1/4-20 X 1 SS | 1 | $0.87 | |
| 40 | 0673-657 | PLATE,BACKING-EYEHOOK | 1 | $6.06 | |
| 41 | 0624-258 | NUT,LOCK 3/8-16 SS | 1 | $1.39 | |
| 42 | 0624-260 | U-BOLT 3/8-16 SS | 1 | $16.49 | |
| 43 | 0624-259 | NUT,CONE 3/8-16 SS | 1 | $13.29 | |
| 44 | 0673-656 | PLATE,BACKUP-EYEHOOK | 1 | $5.29 | |
| 45 | 0624-159 | WASHER,FLAT-FENDER 10MM 1 3/8 OD (SS) | 1 | $2.99 | |
| 46 | 0623-557 | INSERT,BRASS-AVK-ALB2-420-260(.25 X 20) | 1 | $3.95 |
