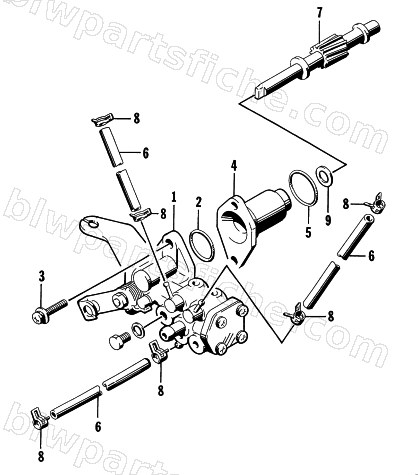

1995 Arctic Cat TIGERSHARK 900 — OIL PUMP
1995 TIGERSHARK 900
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0673-853 | DAMPENER,COUPLER | 1 | $41.59 | |
| 2 | 3008-030 | O RING O:1.5 ID:19.5 | 1 | $3.85 | |
| 3 | 3008-393 | SCREW,5X25 | 1 | $4.59 | |
| 4 | 3004-763 | RETAINER,OIL PUMP SHAFT | 1 | $133.95 | |
| 5 | 3004-153 | O-RING, D:1.5 ID:22.5 | 1 | $3.16 | |
| 6 | 3008-035 | HOSE, M3X7X600 | 1 | $34.95 | |
| 7 | 3004-179 | GEAR, DRIVEN-OIL PUMP | 1 | $122.95 | |
| 8 | 3008-037 | CLAMP,HOSE,M6 | 1 | $3.85 | |
| 9 | 3005-049 | SHIM,10MM | 1 | $3.57 |
