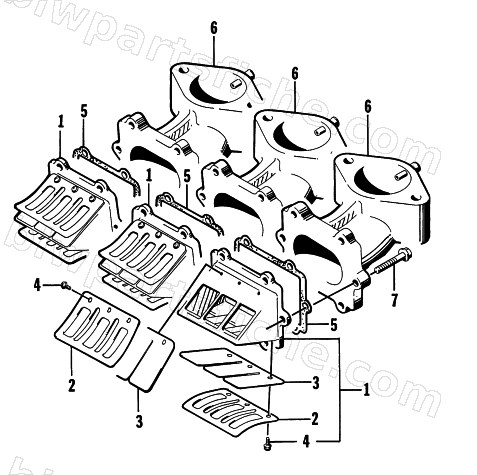

1995 Arctic Cat TIGERSHARK 900 — REED VALVE ASSEMBLY
1995 TIGERSHARK 900
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 3008-075 | VALVE, REED | 1 | $32.95 | |
| 4 | 3004-506 | SCREW, 3X8 | 1 | $2.47 | |
| 5 | 3005-432 | GASKET, REED VALVE | 1 | $17.87 | |
| 6 | 3008-266 | MANIFOLD,INTAKE | 1 | $700.95 | |
| 7 | 0691-788 | BOLT,M6X30 | 1 | $2.95 |
