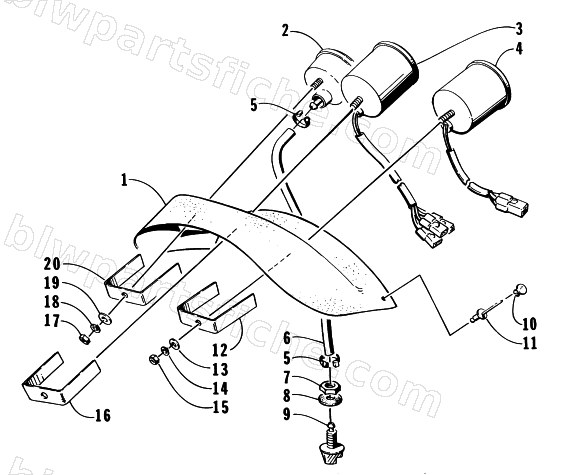

1996 Arctic Cat DAYTONA 770 — INSTRUMENT CONSOLE ASSEMBLY
1996 DAYTONA 770
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0620-176 | SPEEDOMETER | 1 | $186.59 | |
| 3 | 0620-172 | FUEL,GAUGE-W/LOW OIL | 1 | $207.59 | |
| 4 | 0620-179 | TACHOMETER, 4 POLE | 1 | $373.95 | |
| 5 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 6 | 0673-809 | TUBING,VINYL-20FT | 1 | $39.95 | |
| 10 | 1673-111 | PLUG,MUSHROOM-DOMED-BLK | 1 | $0.46 | |
| 11 | 8060-230 | RIVET,BLIND-DH AA48 BLK | 1 | $0.15 | |
| 12 | 0620-175 | BACKCLAMP,TACHOMETER | 1 | $4.09 | |
| 14 | 0624-327 | WASHER,LOCK-SL .168ID SS | 1 | $0.42 | |
| 15 | 0624-326 | NUT,HEX - 8-32 SS | 1 | $0.82 | |
| 16 | 0620-173 | BACKCLAMP,FUEL GAUGE | 1 | $4.89 | |
| 17 | 0624-329 | NUT,SS-10-32 | 1 | $0.67 | |
| 18 | 0624-330 | WASHER,LOCKING SS-194 I. D. | 1 | $0.44 | |
| 19 | 0624-331 | WASHER,FLAT SS-7/32 I.D. | 1 | $0.71 | |
| 20 | 0620-177 | BACKCLAMP,SPEEDOMETER | 1 | $3.69 |
