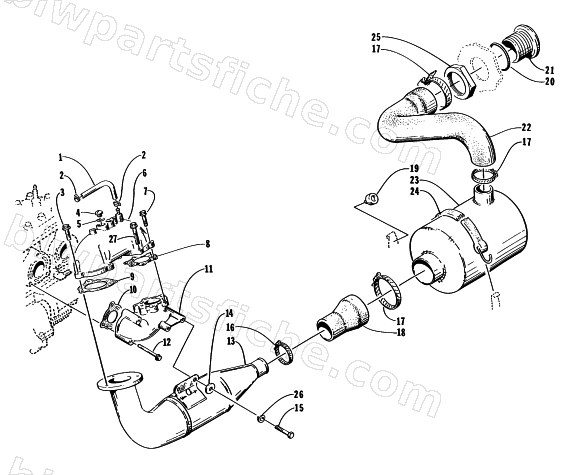

EXHAUST ASSEMBLY
1996 MONTE CARLO 640
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-355 | HOSE,M2-3X10X600 | 1 | $66.59 | |
| 2 | 3008-039 | CLIP, ID:10.5 | 1 | $3.49 | |
| 3 | 3008-215 | BOLT, 8X25 | 1 | $3.49 | |
| 4 | 3008-025 | PLUG,M10X7.5 | 1 | $11.29 | |
| 5 | 3008-022 | GASKET, M10X17X1.5 | 1 | $2.69 | |
| 6 | 3008-398 | PIPE EXHAUST | 1 | $1,112.95 | |
| 7 | 3008-371 | BOLT,8X25 | 1 | $5.59 | |
| 8 | 3008-385 | GASKET,EXHAUST PIPE | 1 | $39.95 | |
| 9 | 3008-386 | GASKET,EXHAUST JOINT | 1 | $59.95 | |
| 10 | 3008-384 | GASKET,EXHAUST MANIFOLD | 1 | $29.95 | |
| 11 | 3008-204 | MANIFOLD, EXHAUST | 1 | $830.59 | |
| 13 | 0712-217 | CHAMBER,EXPANSION-SHORT | 1 | $1,951.95 | |
| 14 | 3008-189 | WASHER,10MM | 1 | $3.49 | |
| 15 | 3008-188 | BOLT,10MM | 1 | $12.95 | |
| 16 | 0624-390 | CLAMP,HOSE- (262) 1.75/2..625 | 1 | $17.87 | |
| 17 | 0624-169 | CLAMP,HOSE {3 1/2"} MS35842-14 | 1 | $4.59 | |
| 18 | 0610-144 | HOSE,EXHAUST (IN) | 1 | $43.59 | |
| 19 | 0673-792 | BUMPER,GROMMET | 1 | $0.86 | |
| 22 | 0610-273 | HOSE,EXHAUST-OUT | 1 | $86.79 | |
| 23 | 0712-205 | MUFFLER- WELDT | 1 | $228.79 | |
| 24 | 0773-382 | STRAP ASSY-8 5/8 | 1 | $54.29 | |
| 25 | 0612-576 | NUT,EXHAUST OUTLET | 1 | $17.95 | |
| 26 | 3008-021 | WASHER, LOCK,10MM | 1 | $2.79 | |
| 27 | 3008-372 | BOLT,8X35 | 1 | $6.59 |
