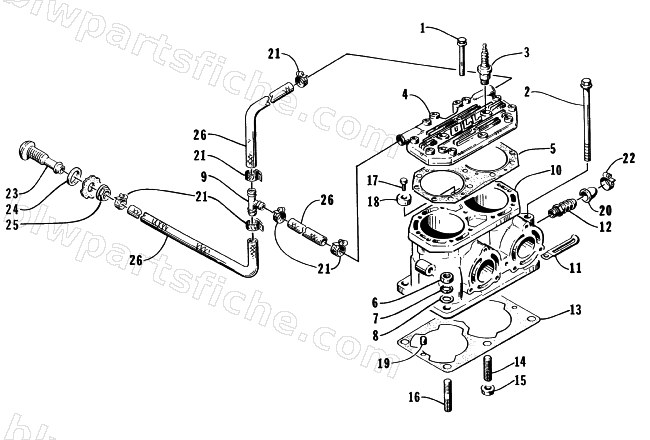

CYLINDER ASSEMBLY
1996 MONTE CARLO 770
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-381 | BOLT,8MM | 1 | $6.29 | |
| 2 | 3008-459 | BOLT, CYLINDER,10MM | 1 | $26.95 | |
| 3 | 0217-700 | SPARK PLUG BR9ES {SOLID} | 1 | $4.54 | |
| 4 | 3008-531 | HEAD, CYLINDER (PJ770) | 1 | $669.29 | |
| 5 | 3008-635 | GASKET, HEAD | 1 | $79.95 | |
| 6 | 3008-209 | NUT,10MM | 1 | $3.16 | |
| 7 | 3008-207 | WASHER, LOCK,10MM | 1 | $3.59 | |
| 8 | 3007-410 | WASHER | 1 | $2.75 | |
| 9 | 0673-483 | FITTING,TEE-3/4 -NYLON | 1 | $5.29 | |
| 10 | 3008-425 | CYLINDER ASSY (PJ770) | 1 | $2,668.95 | |
| 11 | 3008-358 | CLAMP,M10 | 1 | $3.49 | |
| 12 | 3008-361 | UNION | 1 | $49.29 | |
| 13 | 3008-411 | GASKET, CYL BASE - 770 CC | 1 | $49.95 | |
| 14 | 3008-394 | BOLT, CYLINDER STUD-M10X25 | 1 | $5.29 | |
| 15 | 3008-208 | NUT,10MM | 1 | $4.19 | |
| 17 | 3008-013 | BOLT, 6X14 | 1 | $2.79 | |
| 18 | 3008-047 | ZINC, CYLINDER | 1 | $25.79 | |
| 19 | 3008-146 | PIN, KNOCK(ALIGNMENT) | 1 | $2.99 | |
| 20 | 1673-272 | CAP,FITTING-RUBBER | 1 | $2.75 | |
| 21 | 0624-018 | CLAMP,HOSE-6712-5 (1/2-1 1/4) #12 | 1 | $3.29 | |
| 25 | 0623-753 | NUT,HEX FLANGE-( ) | 1 | $6.29 | |
| 26 | 0710-191 | HOSE,WATER-HI TEMP.75X25' | 1 | $101.59 |
