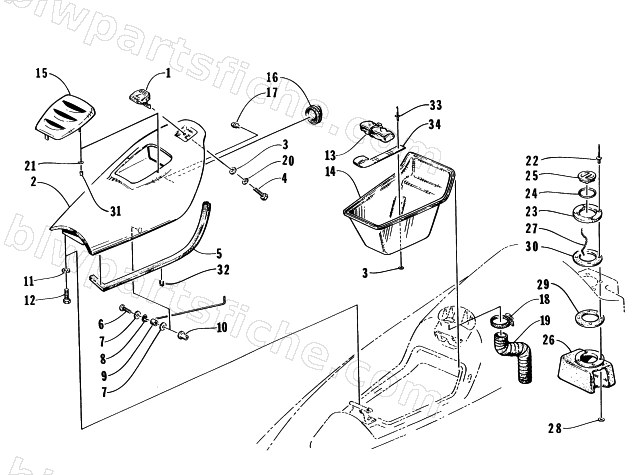

1996 Arctic Cat MONTE CARLO 900 — HATCH COVER AND STORAGE TRAY
1996 MONTE CARLO 900
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0673-882 | LATCH-BLACK | 1 | $48.95 | |
| 2 | 0773-653 | HATCH COVER-ASSY-RED SP 96MCB/C | 1 | $460.95 | |
| 2 | 0773-654 | HATCH COVER- ASSY-BLUE SP 96MCD | 1 | $453.95 | |
| 3 | 0624-004 | WASHER,FLAT-M5 (SS) | 1 | $0.44 | |
| 3 | 0623-028 | CLAMP,5/16-3/4DIA | 1 | $3.57 | |
| 4 | 0624-092 | SCREW,CAP HH 5MM .8TX20MM (SS) | 1 | $1.29 | |
| 5 | 0773-680 | SEAL,HATCH-MFG ASSY | 1 | $62.95 | |
| 6 | 0624-214 | SCREW,CAP-HH M6-1.0 X 30 (SS) | 1 | $2.19 | |
| 7 | 0624-182 | WASHER,FLAT-6.4MM ID X 18MM OD X 1.6T (S | 1 | $0.52 | |
| 8 | 0673-899 | ROD,PROP-HATCH | 1 | $24.77 | |
| 14 | 0673-250 | TRAY STORAGE | 1 | $77.95 | |
| 20 | 0624-200 | WASHER,LOCK-M5 (SS) | 1 | $0.71 | |
| 21 | 0624-361 | RETAINER,PUSH-ON | 1 | $0.87 | |
| 22 | 0623-633 | RIVET-AD614ABS | 1 | $1.29 | |
| 23 | 0406-205 | RING,MNTG-TOOL BOX LID | 1 | $13.95 | |
| 26 | 0673-652 | CONTAINER STORAGE | 1 | $93.95 | |
| 27 | 0773-401 | CHAIN STORAGE MFG ASSY | 1 | $10.97 | |
| 28 | 0623-603 | WASHER,BACKUP-ABUP6 | 1 | $0.43 | |
| 30 | 0673-973 | SEAL, STORAGE COVER | 1 | $106.95 | |
| 32 | 0624-100 | STAPLE,3/8L X 1/2W-20GA SS-SEAT | 1 | $0.12 | |
| 33 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 35 | 0624-074 | RIVET AD44AH | 1 | $0.65 |
