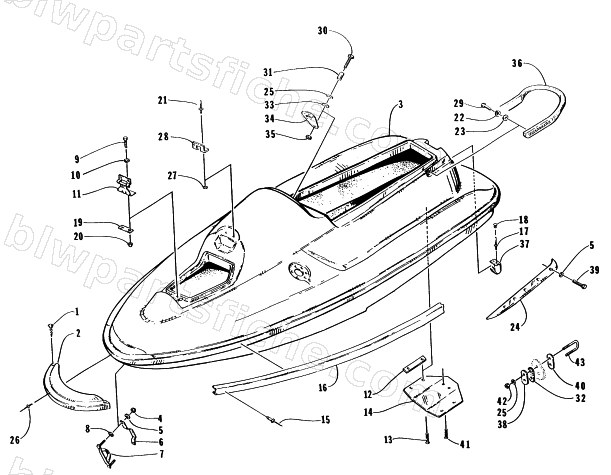

1996 Arctic Cat MONTE CARLO 900 — HULL AND RELATED PARTS ASSEMBLY
1996 MONTE CARLO 900
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0773-650 | HULL/DECK-MFG ASSY-SP 96MCC | 1 | $5,255.29 | |
| 3 | 0773-651 | HULL/DECK-MFG ASSY-SP 96MCD | 1 | $5,255.29 | |
| 4 | 0624-089 | NUT,LOCK-HH 1/4 20 (SS) | 1 | $1.39 | |
| 5 | 0624-247 | WASHER,FLAT (SS) .250X.562 | 1 | $0.75 | |
| 6 | 0673-897 | STRAP,REINFORCEMENT | 1 | $15.11 | |
| 7 | 0773-516 | BOWEYE-WELDMENT | 1 | $66.95 | |
| 8 | 0624-299 | WASHER,SEALING-1/4 SS | 1 | $0.92 | |
| 9 | 0624-112 | SCREW,CAP HH6MM 1.0TX25MM | 1 | $0.65 | |
| 10 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 | |
| 11 | 0673-871 | HINGE | 1 | $73.95 | |
| 12 | 1673-200 | PLATE,NUT | 1 | $12.95 | |
| 13 | 0624-186 | SCREW,MACH-TSFH 6MM-1.0 X 35MM (SS) | 1 | $2.19 | |
| 14 | 1673-256 | PLATE,RIDE-.650 | 1 | $175.95 | |
| 15 | 0624-030 | RIVET,SS/SS610LF | 1 | $2.19 | |
| 16 | 0673-916 | TRIM,RH-BLK | 1 | $102.29 | |
| 16 | 0673-999 | TRIM,LH-BLK | 1 | $115.79 | |
| 17 | 8060-230 | RIVET,BLIND-DH AA48 BLK | 1 | $0.15 | |
| 18 | 1673-111 | PLUG,MUSHROOM-DOMED-BLK | 1 | $0.46 | |
| 19 | 0673-870 | PLATE,HINGE | 1 | $4.69 | |
| 20 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 21 | 0623-636 | RIVET,AD610ABSLF-BLK | 1 | $1.29 | |
| 22 | 0624-115 | WASHER,LOCK-SL .250 SS | 1 | $0.21 | |
| 23 | 0624-228 | WASHER,FLAT-.281X.625X.037 (SS) | 1 | $0.68 | |
| 25 | 0624-159 | WASHER,FLAT-FENDER 10MM 1 3/8 OD (SS) | 1 | $2.99 | |
| 26 | 0624-072 | RIVET,SS/SS68D | 1 | $1.29 | |
| 27 | 0624-004 | WASHER,FLAT-M5 (SS) | 1 | $0.44 | |
| 28 | 0673-866 | STRIKE | 1 | $10.97 | |
| 29 | 0624-289 | SCREW,CAP-HH 1/4-20 X 1 SS | 1 | $0.87 | |
| 30 | 0624-223 | SCREW,CAP-M10 X 60 (SS) DIN 931 | 1 | $5.59 | |
| 31 | 0673-485 | STOP,STEERING POST | 1 | $6.29 | |
| 33 | 0623-391 | WASHER,RUBBER 10MM ID | 1 | $5.79 | |
| 34 | 0673-417 | PLATE,BACKING-STEERING POST | 1 | $15.79 | |
| 37 | 0673-975 | COVER,RUB RAIL | 1 | $46.95 | |
| 38 | 0673-656 | PLATE,BACKUP-EYEHOOK | 1 | $5.29 | |
| 39 | 0624-271 | SCREW,MACH-PHPNH-1/4-20 X 1 (SS) | 1 | $0.55 | |
| 40 | 0673-657 | PLATE,BACKING-EYEHOOK | 1 | $6.06 | |
| 42 | 0624-258 | NUT,LOCK 3/8-16 SS | 1 | $1.39 | |
| 43 | 0624-260 | U-BOLT 3/8-16 SS | 1 | $16.49 |
