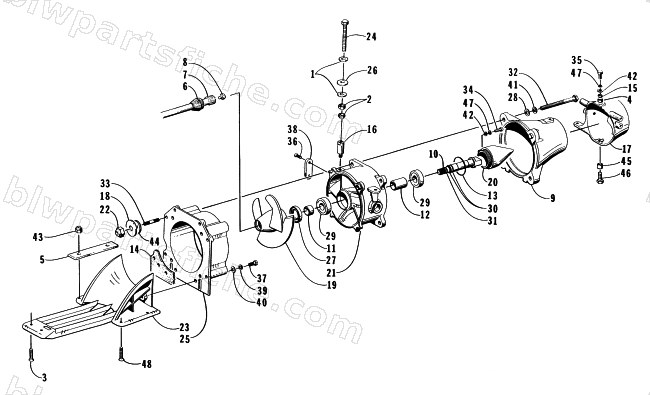

1996 Arctic Cat MONTE CARLO 900 — IMPELLER DRIVE ASSEMBLY
1996 MONTE CARLO 900
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0624-125 | WASHER FLAT,FENDER 8MM (SS) | 1 | $1.69 | |
| 2 | 0624-061 | NUT,JAM 8MM 1.25T (SS) | 1 | $1.19 | |
| 3 | 0624-186 | SCREW,MACH-TSFH 6MM-1.0 X 35MM (SS) | 1 | $2.19 | |
| 4 | 1673-104 | PLATE,BACKING-1.77 | 1 | $12.35 | |
| 4 | 1673-122 | BUSHING | 1 | $0.71 | |
| 5 | 1673-105 | PLATE,BACKING-3.87 | 1 | $8.59 | |
| 8 | 0673-618 | BUMPER,DRIVESHAFT | 1 | $3.57 | |
| 9 | 0675-112 | VENTURI,SC-MACH | 1 | $329.95 | |
| 9 | 0675-110 | VENTURI,3' SC-MACH | 1 | $231.59 | |
| 11 | 0675-085 | SPACER,IMPELLER | 1 | $27.59 | |
| 12 | 0675-084 | SPACER,BEARING | 1 | $56.95 | |
| 15 | 1673-121 | BUSHING | 1 | $2.95 | |
| 15 | 0675-070 | SPACER,NOZZLE-STEERING | 1 | $2.69 | |
| 16 | 0675-062 | SUPPORT,PUMP | 1 | $21.59 | |
| 17 | 0675-090 | RING, STEERING-SC-MACH | 1 | $180.95 | |
| 17 | 0675-126 | NOZZLE,STEERING-SC MACH W/REVERSE LUGS | 1 | $230.95 | |
| 19 | 1773-044 | IMPELLER KIT | 1 | $572.59 | |
| 19 | 0673-779 | IMPELLER-15.5-20 | 1 | $751.95 | |
| 22 | 0624-090 | NUT,LOCK-HH M8-1.25 (SS) | 1 | $1.89 | |
| 23 | 0675-336 | GRATE,INLET-SCOOP | 1 | $106.95 | |
| 24 | 0624-399 | SCREW,CAP-HH M8 1.25X60 DIN 933 | 1 | $3.59 | |
| 25 | 0675-128 | WEAR RING,DCMACH 5.748 | 1 | $690.95 | |
| 26 | 0624-126 | WASHER FLAT,RUBBER 8MM | 1 | $12.59 | |
| 27 | 0637-194 | KIT, SEAL,-STATOR | 1 | $94.95 | |
| 28 | 0624-008 | WASHER,FLAT-10MM SS | 1 | $0.69 | |
| 30 | 0673-608 | O-RING,11/16 X 1/16 (-017) | 1 | $0.44 | |
| 31 | 0673-607 | O-RING,9/16 X 1/16 (-015) | 1 | $7.29 | |
| 32 | 0624-386 | SCREW,CAP-HH M10-1.5X130 SS | 1 | $18.79 | |
| 32 | 0624-371 | SCREW,CAP-M10 1.5X140MM 90MMSHANK | 1 | $16.79 | |
| 33 | 0624-319 | STUD,M8-1.25 X 54 | 1 | $33.29 | |
| 35 | 0624-174 | SCREW,CAP-HSH 8MM 1.25P X 10MM-SS | 1 | $2.59 | |
| 38 | 0624-084 | ZINC ANODES | 1 | $28.59 | |
| 39 | 0624-027 | WASHER,LOCK-SL 8MM SS | 1 | $0.44 | |
| 40 | 0624-028 | WASHER,FLAT-8MM SS | 1 | $0.40 | |
| 41 | 0675-092 | NOZZLE, TRIM-SC-MACH | 1 | $162.29 | |
| 42 | 0624-022 | WASHER,FLAT-6MM SS | 1 | $0.22 | |
| 43 | 0624-012 | WASHER,LOCK-10MM SL (SS) | 1 | $0.92 | |
| 44 | 0624-250 | NUT,LOCK-NSL M6-1.0 SS | 1 | $0.68 | |
| 45 | 0624-387 | WASHER,SEALING-5/16 SS | 1 | $0.69 | |
| 45 | 0624-122 | NUT,PRESS-8MM1.25T (SS) | 1 | $6.29 |
