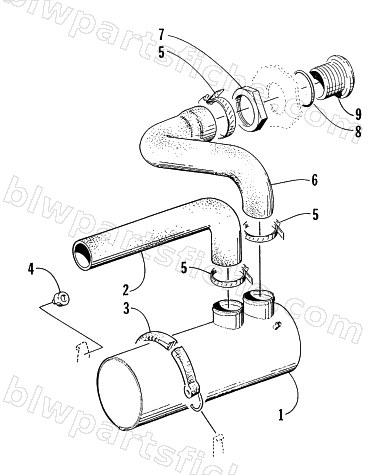

1996 Arctic Cat MONTE CARLO 900 — MUFFLER ASSEMBLY
1996 MONTE CARLO 900
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0773-382 | STRAP ASSY-8 5/8 | 1 | $54.29 | |
| 4 | 0673-792 | BUMPER,GROMMET | 1 | $0.86 | |
| 5 | 0624-169 | CLAMP,HOSE {3 1/2"} MS35842-14 | 1 | $4.59 | |
| 6 | 0610-269 | HOSE,EXHAUST-OUT | 1 | $180.59 | |
| 7 | 0612-576 | NUT,EXHAUST OUTLET | 1 | $17.95 |
