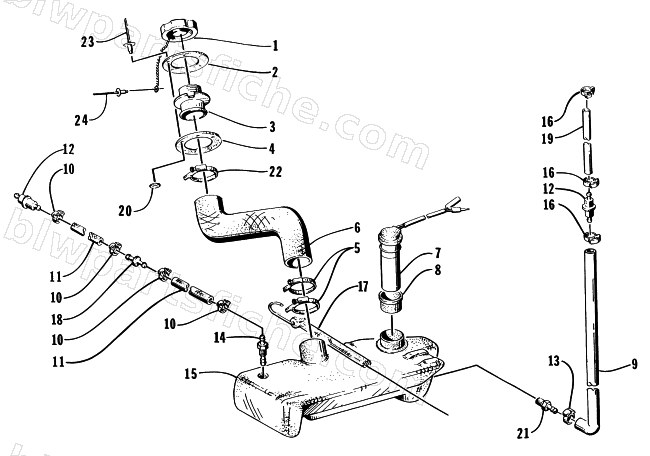

1996 Arctic Cat MONTE CARLO 900 — OIL TANK ASSEMBLY
1996 MONTE CARLO 900
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0470-970 | NECK,FILL-REMOTE | 1 | $10.97 | |
| 5 | 0624-037 | CLAMP,HOSE-6736-5 (SS) 7/8 -2-3/4 | 1 | $5.29 | |
| 8 | 0609-237 | SEAL,GROMMET-OIL SENSOR (REF 0609-224) | 1 | $3.44 | |
| 9 | 0610-263 | HOSE,OIL-3/8"ID X 25' | 1 | $177.95 | |
| 10 | 0624-120 | CLAMP,HOSE (SNP06) | 1 | $2.19 | |
| 11 | 0610-107 | HOSE, GAS LINE, 25' | 1 | $223.95 | |
| 13 | 0623-646 | CLAMP,HOSE (SNP08) .513-.586 | 1 | $4.95 | |
| 14 | 0670-564 | OUTLET,GAS TANK-BRASS | 1 | $17.87 | |
| 15 | 0670-720 | TANK,OIL | 1 | $126.59 | |
| 16 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 17 | 0773-383 | STRAP ASSY-22 1/4 | 1 | $12.59 | |
| 19 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 20 | 0673-985 | UNION,COUPLER3/8X1/4 | 1 | $1.29 | |
| 22 | 0624-390 | CLAMP,HOSE- (262) 1.75/2..625 | 1 | $17.87 | |
| 23 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 24 | 0624-074 | RIVET AD44AH | 1 | $0.65 |
