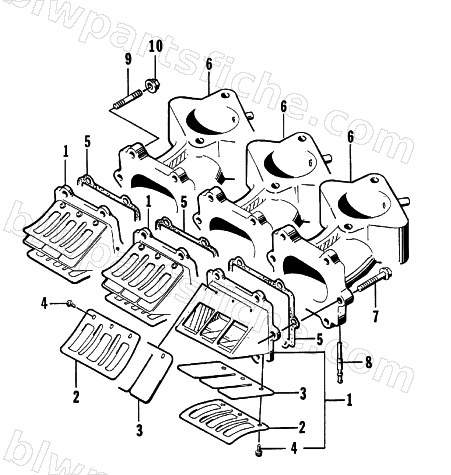

1996 Arctic Cat MONTE CARLO 900 — REED VALVE ASSEMBLY
1996 MONTE CARLO 900
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 3008-075 | VALVE, REED | 1 | $32.95 | |
| 4 | 3004-506 | SCREW, 3X8 | 1 | $2.47 | |
| 5 | 3005-432 | GASKET, REED VALVE | 1 | $17.87 | |
| 6 | 3008-443 | PIPE ASSY, INTAKE | 1 | $690.95 | |
| 7 | 0691-788 | BOLT,M6X30 | 1 | $2.95 | |
| 8 | 3003-597 | NOZZLE,INJECTION | 1 | $13.73 | |
| 9 | 3008-370 | BOLT,6X25 | 1 | $4.69 | |
| 10 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 |
