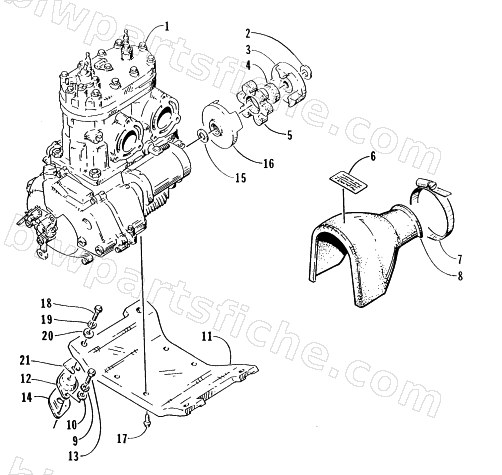

1996 Arctic Cat MONTEGO DELUXE — ENGINE AND RELATED ASSEMBLY
1996 MONTEGO DELUXE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-174 | ENGINE,639 L/C-AC-TSK | 1 | $7,094.79 | |
| 2 | 0624-017 | WASHER,FLAT-18MM-HARDENED SS | 1 | $24.95 | |
| 3 | 3008-090 | COUPLER, ENGINE | 1 | $99.95 | |
| 4 | 0673-146 | PUCK,COUPLER RUBBER | 1 | $30.29 | |
| 6 | 1611-608 | DECAL,NOTICE-SHAFT GUARD | 1 | $9.79 | |
| 7 | 0624-037 | CLAMP,HOSE-6736-5 (SS) 7/8 -2-3/4 | 1 | $5.29 | |
| 9 | 0624-027 | WASHER,LOCK-SL 8MM SS | 1 | $0.44 | |
| 10 | 0624-028 | WASHER,FLAT-8MM SS | 1 | $0.40 | |
| 11 | 3008-359 | PLATE,ENGINE | 1 | $833.95 | |
| 13 | 0624-087 | SCREW,CAP HH 8MM1.25TX35MM (SS) | 1 | $4.19 | |
| 14 | 0673-509 | SHIM,ENG MNT-.063 | 1 | $3.19 | |
| 15 | 1673-010 | WASHER,SPACER 1.35X.96 | 1 | $2.39 | |
| 16 | 3008-449 | COUPLER,ENGINE-M24 | 1 | $101.95 | |
| 17 | 3008-203 | BOLT, ENGINE PLATE-M10X30 | 1 | $4.95 | |
| 18 | 3008-240 | BOLT10X35 | 1 | $17.79 | |
| 19 | 3008-021 | WASHER, LOCK,10MM | 1 | $2.79 | |
| 20 | 3008-016 | WASHER, 10.5X30X3.2 | 1 | $3.85 | |
| 21 | 0624-015 | SHIM-1.5MM/16 GA. SS | 1 | $2.69 | |
| 21 | 0624-014 | SHIM-.5MM/26 GA. SS | 1 | $2.29 |
