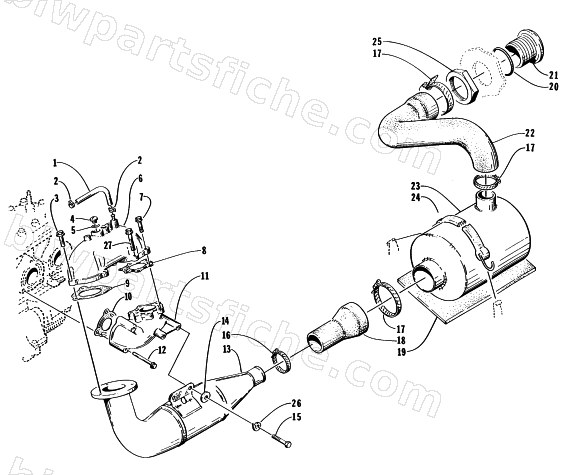

EXHAUST ASSEMBLY
1996 MONTEGO DELUXE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-355 | HOSE,M2-3X10X600 | 1 | $66.59 | |
| 2 | 3008-039 | CLIP, ID:10.5 | 1 | $3.49 | |
| 3 | 3008-215 | BOLT, 8X25 | 1 | $3.49 | |
| 4 | 3008-025 | PLUG,M10X7.5 | 1 | $11.29 | |
| 5 | 3008-022 | GASKET, M10X17X1.5 | 1 | $2.69 | |
| 6 | 3008-398 | PIPE EXHAUST | 1 | $1,112.95 | |
| 7 | 3008-371 | BOLT,8X25 | 1 | $5.59 | |
| 8 | 3008-385 | GASKET,EXHAUST PIPE | 1 | $39.95 | |
| 9 | 3008-386 | GASKET,EXHAUST JOINT | 1 | $59.95 | |
| 10 | 3008-384 | GASKET,EXHAUST MANIFOLD | 1 | $29.95 | |
| 11 | 3008-204 | MANIFOLD, EXHAUST | 1 | $830.59 | |
| 13 | 3008-485 | MUFFLER, 1ST | 1 | $1,617.95 | |
| 14 | 3008-016 | WASHER, 10.5X30X3.2 | 1 | $3.85 | |
| 15 | 3008-188 | BOLT,10MM | 1 | $12.95 | |
| 16 | 0624-038 | CLAMP,HOSE-6728-5 (1 5/16-2 1/4) #28 | 1 | $4.49 | |
| 17 | 0624-018 | CLAMP,HOSE-6712-5 (1/2-1 1/4) #12 | 1 | $3.29 | |
| 22 | 0773-644 | HOSE,EXHAUST OUT-MFG.PART | 1 | $95.59 | |
| 23 | 0712-205 | MUFFLER- WELDT | 1 | $228.79 | |
| 24 | 0773-382 | STRAP ASSY-8 5/8 | 1 | $54.29 | |
| 25 | 0612-576 | NUT,EXHAUST OUTLET | 1 | $17.95 | |
| 26 | 3008-021 | WASHER, LOCK,10MM | 1 | $2.79 | |
| 27 | 3008-372 | BOLT,8X35 | 1 | $6.59 |
