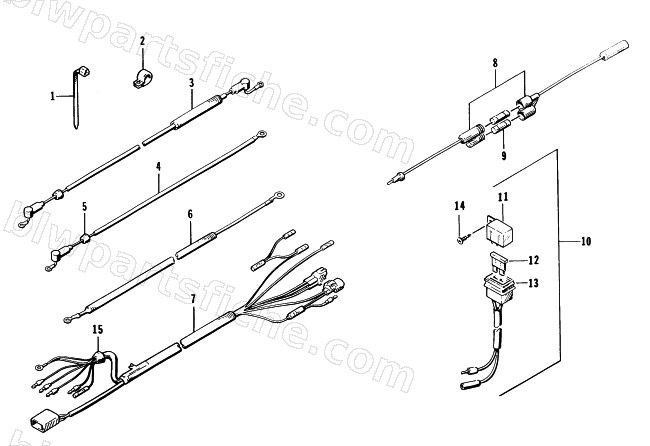

1996 Arctic Cat MONTEGO DELUXE — WIRING HARNESS
1996 MONTEGO DELUXE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-044 | CLAMP, L:125,M14 | 1 | $2.69 | |
| 2 | 3008-332 | CLAMP,M6 | 1 | $5.79 | |
| 2 | 3008-357 | CLAMP,M6 | 1 | $3.09 | |
| 3 | 3008-346 | CABLE,STARTER | 1 | $118.95 | |
| 4 | 3008-345 | CABLE,BATTERY | 1 | $64.95 | |
| 5 | 3008-334 | GROMMET | 1 | $22.01 | |
| 6 | 3008-154 | CABLE, GROUND | 1 | $66.95 | |
| 7 | 3008-347 | HARNESS,WIRING | 1 | $401.95 | |
| 7 | 3008-292 | HARNESS,WIRING | 1 | $401.95 | |
| 8 | 0630-082 | FUSEHOLDER,WATERPROOF-3A | 1 | $59.95 | |
| 9 | 0630-084 | FUSE,3AMP-3AG | 1 | $3.09 | |
| 14 | 0624-068 | RIVET,SS/SS610D | 1 | $1.39 | |
| 15 | 3008-362 | GROMMET | 1 | $12.95 |
