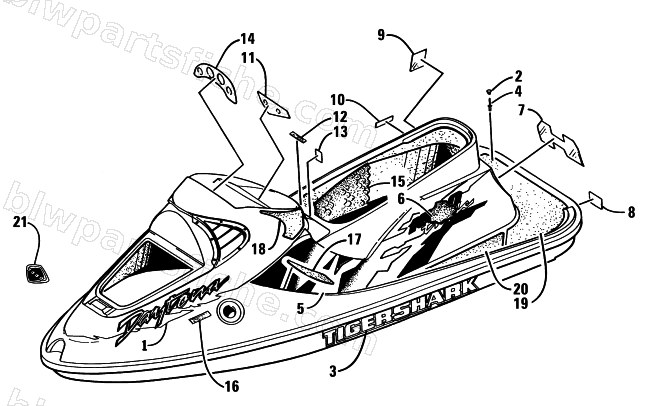

1997 Arctic Cat DAYTONA 1000 — DECAL AND FOOTPAD ASSEMBLY
1997 DAYTONA 1000
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0614-318 | DECAL,DECK-"DAYTONA" | 1 | $41.79 | |
| 2 | 1673-111 | PLUG,MUSHROOM-DOMED-BLK | 1 | $0.46 | |
| 3 | 0614-316 | DECAL,HULL-STARBOARD"TIGERSHARK" | 1 | $24.79 | |
| 3 | 0614-317 | DECAL,HULL-PORT"TIGERSHARK" | 1 | $24.79 | |
| 4 | 8060-230 | RIVET,BLIND-DH AA48 BLK | 1 | $0.15 | |
| 5 | 0614-314 | DECAL,SIDE-STARBOARD | 1 | $65.95 | |
| 5 | 0614-315 | DECAL,SIDE-PORT | 1 | $98.59 | |
| 6 | 0617-259 | FOAM,SOUND-PORT | 1 | $36.59 | |
| 7 | 0614-351 | DECAL,REGULATION-RED | 1 | $39.95 | |
| 8 | 0614-154 | DECAL,CAUTION-UPRIGHTING | 1 | $12.29 | |
| 9 | 0614-326 | DECAL,USCG EXEMPTION-RED | 1 | $6.79 | |
| 10 | 0614-325 | DECAL,COMMON SENSE-RED | 1 | $4.49 | |
| 11 | 0614-355 | DECAL,CONSOLE (NO RESERVE) | 1 | $21.59 | |
| 12 | 0614-300 | DECAL, OIL - USAGE | 1 | $8.59 | |
| 13 | 1611-866 | DECAL,WARNING-GAS VAPORS | 1 | $4.69 | |
| 14 | 0614-309 | DECAL,INSTRUMENT PANEL | 1 | $13.95 | |
| 16 | 0614-323 | DECAL,CAUTION-FUEL | 1 | $21.95 | |
| 17 | 0773-847 | PAD,FOOT-FULL SET | 1 | $252.79 | |
| 17 | 1673-246 | PAD,FOOT-FWD RH | 1 | $61.95 | |
| 17 | 1673-247 | PAD,FOOT-FWD LH | 1 | $50.79 | |
| 18 | 1673-292 | PAD,KNEE-STARBOARD | 1 | $9.38 | |
| 20 | 1673-244 | PAD,FOOT-RH | 1 | $113.95 | |
| 20 | 1673-245 | PAD,FOOT-LH | 1 | $113.95 | |
| 21 | 0614-320 | DECAL,CREST | 1 | $26.29 |
