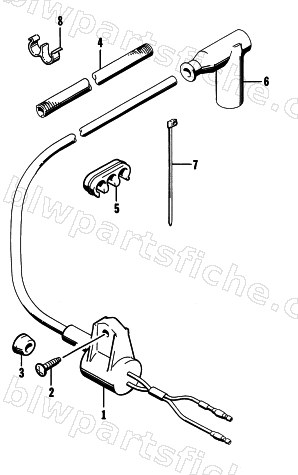

1997 Arctic Cat DAYTONA 1000 — IGNITION COIL
1997 DAYTONA 1000
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-523 | COIL ASSY, IGNITION | 1 | $223.95 | |
| 2 | 3008-321 | SCREW,6X20 | 1 | $2.59 | |
| 3 | 3008-334 | GROMMET | 1 | $22.01 | |
| 4 | 3008-445 | HOSE,600MM | 1 | $13.95 | |
| 5 | 3008-252 | CLAMP | 1 | $5.59 | |
| 6 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 7 | 3003-787 | CABLE TIE | 1 | $4.95 | |
| 8 | 3008-045 | CLIP | 1 | $5.95 |
