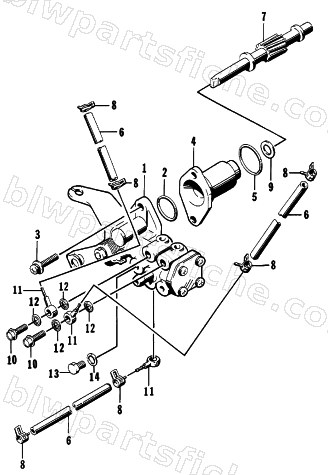

1997 Arctic Cat DAYTONA 1000 — OIL PUMP ASSEMBLY
1997 DAYTONA 1000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-630 | PUMP ASSY, OIL | 1 | $639.59 | |
| 2 | 3008-030 | O RING O:1.5 ID:19.5 | 1 | $3.85 | |
| 3 | 3008-393 | SCREW,5X25 | 1 | $4.59 | |
| 4 | 3004-763 | RETAINER,OIL PUMP SHAFT | 1 | $133.95 | |
| 5 | 3005-126 | O RING | 1 | $4.26 | |
| 6 | 3008-035 | HOSE, M3X7X600 | 1 | $34.95 | |
| 7 | 3004-179 | GEAR, DRIVEN-OIL PUMP | 1 | $122.95 | |
| 8 | 3008-037 | CLAMP,HOSE,M6 | 1 | $3.85 | |
| 9 | 3005-049 | SHIM,10MM | 1 | $3.57 | |
| 10 | 3008-528 | BOLT | 1 | $6.95 | |
| 11 | 3003-217 | CHECK VALVE | 1 | $38.95 | |
| 12 | 3003-290 | GASKET,CHECK VALVE,6MM | 1 | $3.85 | |
| 13 | 6505-820 | SCREW,OIL PUMP BLEED | 1 | $2.95 | |
| 14 | 6505-821 | WASHER,BLEED SCREW | 1 | $3.95 |
